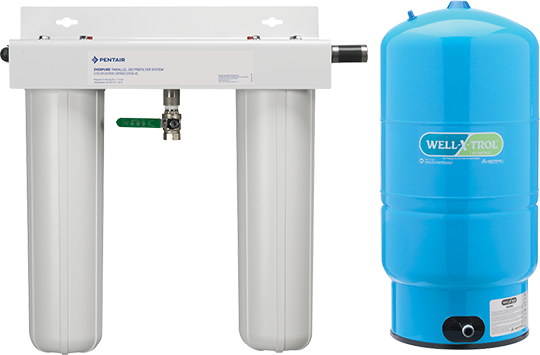

Everpure Parallel 202 Prefilter Kit (EV933652) High-Volume Prefilter System
The Everpure Parallel 202 Prefilter Kit (EV933652) is a high-capacity prefilter system designed to maximize the life of submicron filters in demanding foodservice applications, featuring dual 4" x 20" sumps with EC204 cartridges, a 12-gallon surge tank for peak demand, and an integrated water meter for monitoring usage across coffee makers, ice machines, and fountain dispensers.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV933652 - Parallel 202 Prefilter Kit |
| Flow Rate | Maximum 10 GPM (37.8 LPM) |
| Micron Rating | 10 Microns |
| Surge Tank Capacity | 12 Gallons Reserve |
| Contaminants Filtered | Particulates, Dirt, Algae, Sediment |
Key Features
- ā Dual Gradient Prefilter Cartridges: Two parallel 4" x 20" high-efficiency EC204 cartridges reduce dirt and particles at least 10 microns in size, extending submicron filter life
- ā 12-Gallon Surge Tank: Extra capacity reserve provides additional draw down capacity for high-volume locations and peak demand periods
- ā Built-In Water Meter: Monitors water demand and usage across all connected equipment for accurate maintenance scheduling and capacity tracking
- ā High-Volume Performance: Delivers quality filtered water at up to 10 GPM to support fountain dispensers, coffee makers, and ice machines in demanding environments
- ā Cost-Effective Protection: Ideal for water supplies with excessive dirt loads, significantly extending the lifespan of expensive submicron filtration system cartridges
- ā Easy Integration: Includes fittings for seamless connections to existing Everpure filtration systems with 3/4" inlet and outlet connections
FAQ
Q: How often should I replace the EC204 prefilter cartridges in the Parallel 202 system?
A: Change cartridges on a regular six-month preventative maintenance program, or sooner if capacity is reached or when pressure falls below 10 psi (0.7 bar). Water quality conditions may require more frequent replacement.
Q: What clearance space is required for installation and cartridge replacement?
A: The system must be installed vertically with bowls hanging down. Allow 2-1/2" (6.35 cm) clearance below the cartridge for easy cartridge replacement. Overall dimensions are 26.125" H x 23.25" W x 8.5" D.
Q: Can the Parallel 202 Prefilter Kit handle the demands of multiple pieces of equipment simultaneously?
A: Yes, the EV933652 is specifically designed for high-volume combination applications. The dual parallel cartridges and 12-gallon surge tank provide sufficient capacity to serve multiple coffee makers, ice machines, and fountain dispensers while maintaining consistent flow up to 10 GPM.
What's Included
- Parallel 202 Prefilter System with dual 4" x 20" sumps
- Two EC204 Replacement Cartridges (EV9108-40)
- 12-Gallon Surge Tank (EV9336-51)
- Built-in water meter
- Connection fittings for Everpure filtration systems
- Installation and operation documentation
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
