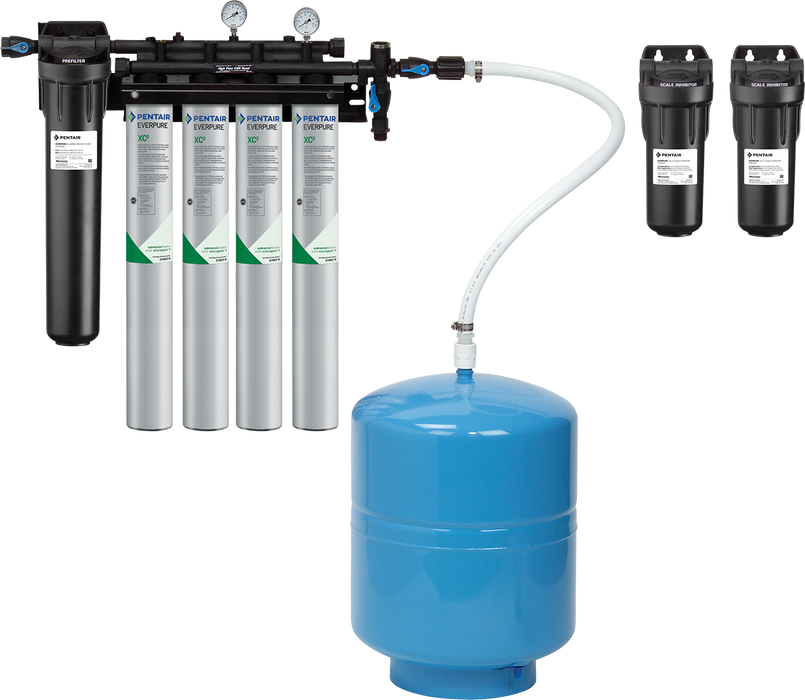

Everpure High Flow CSR Quad-XC2 (EV934710) Commercial Water Filtration System
The Everpure High Flow CSR Quad-XC2 (EV934710) is a high-capacity commercial water filtration system designed to deliver premium quality water for fountain, coffee, and ice applications, featuring advanced precoat filtration technology that reduces chlorine taste and odor while filtering particles down to 0.2 microns to meet peak demand flow requirements in extreme water conditions.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | High Flow CSR Quad-XC2 2SR-X |
| Filtration Capacity | 36,000 gallons (136,274 L) |
| Flow Rate | 6.7 GPM (25.4 Lpm) |
| Micron Rating | 0.2 microns |
| Contaminants Filtered | Chlorine, taste & odor, particulates, cysts (Cryptosporidium & Giardia) |
Key Features
- ✓ Micro-Pure II Filtration Media: Proprietary media effectively inhibits bacterial growth on filter media to maintain product life and water quality
- ✓ Dual SR-X Systems: Two mounted SR-X systems with SS-IMF cartridges inhibit limescale buildup in ice machines and coffee brewers
- ✓ Multi-Application Design: Single system provides filtered water to high flow fountain equipment, coffee machines, and ice makers simultaneously
- ✓ NSF/ANSI Certified: Certified under Standards 42 and 53 for chlorine reduction and mechanical cyst removal including Cryptosporidium and Giardia
- ✓ Precoat Filtration Technology: Exclusive precoat system provides superior chlorine taste and odor reduction while filtering particles as small as 0.2 microns
- ✓ Sanitary Cartridge Replacement: Simple, quick cartridge changes ensure minimal downtime and maintain consistent water quality
FAQ
Q: How often should the cartridges be replaced in the EV934710 system?
A: Change cartridges on a regular six-month preventative maintenance program, or when the 36,000-gallon capacity is reached, or when pressure falls below 10 psi (0.7 bar). The SS-IMF cartridge should be changed before the Hydroblend compound is completely used up, and the prefilter cartridge when excessively dirty.
Q: What applications is the High Flow CSR Quad-XC2 designed for?
A: The EV934710 is designed for combination applications including high-flow fountain equipment, coffee brewers, steam applications, and ice machines. Fountain equipment connects to the outlet before the SR-X system, while coffee and ice machine connections are made after the SR-X feeder using a tee fitting.
Q: What are the installation requirements for this system?
A: Install the system vertically with cartridges hanging down on a mounting location that can support the full operating weight (system: 50 lbs, tank: 60 lbs). Use 3/4" water line, allow 2.5" clearance below cartridges for replacement, and flush the system for five minutes at full flow after installation or cartridge changes.
What's Included
- High Flow CSR Quad-XC2 filtration system with surge tank
- Two (2) SR-X systems with SS-IMF cartridges
- XC² primary filtration cartridge
- 20" prefilter cartridge (EC210)
- Mounting hardware and installation components
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
