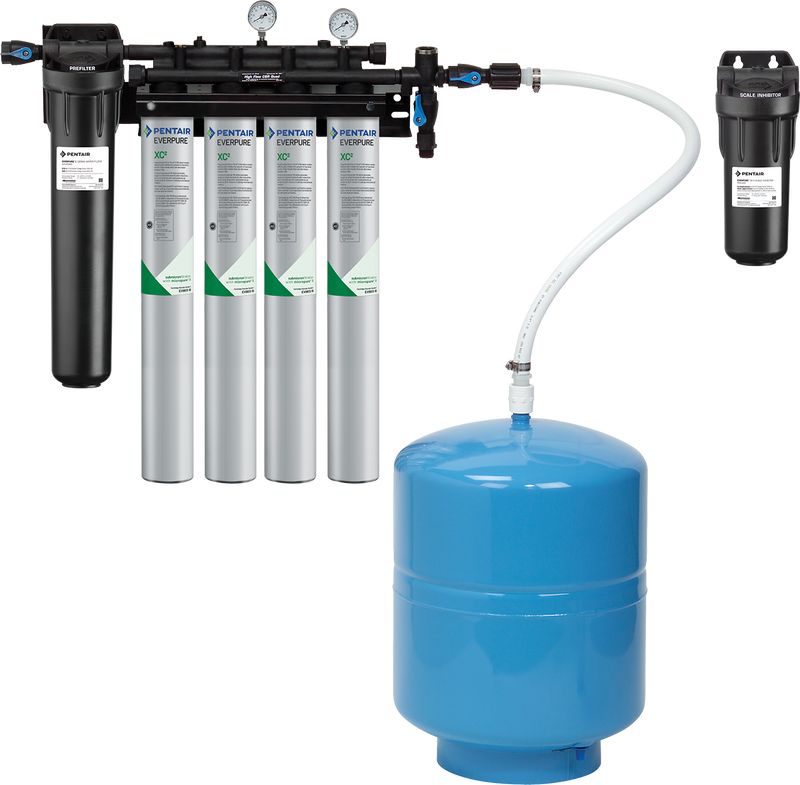

Everpure High Flow CSR Plus-XC2 (EV934720) Water Filtration System
The Everpure High Flow CSR Plus-XC2 (EV934720) is a premium commercial water filtration system designed for combination applications, featuring a 48,000-gallon capacity with a 9-gallon surge tank, delivering superior chlorine taste and odor reduction while filtering particulates down to 0.5 microns for enhanced beverage quality in high-volume foodservice operations.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | High Flow CSR Plus-XC2 (EV934720) |
| Filtration Capacity | 48,000 gallons (181,699 L) |
| Flow Rate | Maximum 6.7 gpm (25.4 Lpm) |
| Micron Rating | 0.5 microns |
| Contaminants Filtered | Chlorine taste & odor, particulates, cysts (Cryptosporidium & Giardia) |
Key Features
- ✓ Combination Application Design: One system provides premium quality water to high flow fountains, coffee machines, and ice makers simultaneously
- ✓ Micro-Pure® II Filtration Technology: Proprietary media effectively inhibits bacterial growth on filter media, extending product life and ensuring consistent water quality
- ✓ Precoat Submicron Technology: Exclusive technology provides superior chlorine taste and odor reduction while mechanically filtering particles as small as 0.5 microns
- ✓ 9-Gallon Surge Tank: Integrated tank meets peak demand flow requirements in high-volume installations, ensuring consistent water delivery during busy periods
- ✓ SS-IMF Scale Inhibition: Remote mounted SR-X system with SS-IMF cartridge inhibits limescale buildup in ice machines and coffee brewers, protecting equipment
- ✓ NSF/ANSI Certified: Tested and certified under Standards 42 and 53 for aesthetic effects and health effects, including mechanical cyst reduction
FAQ
Q: What maintenance schedule is recommended for the High Flow CSR Plus-XC2 system?
A: Change cartridges on a regular six-month preventative maintenance program or when capacity is reached. Always flush the system for five minutes at full flow after cartridge replacement to ensure optimal performance.
Q: Can this system handle multiple equipment types simultaneously?
A: Yes, the EV934720 is specifically designed for combination applications. Fountain equipment connects to the outlet before the SR-X system, while coffee brewers and ice machines connect after the SR-X feeder using a tee fitting for optimal water distribution.
Q: What water line size is required for proper installation?
A: The system requires a 3/4-inch water line with 3/4-inch NPT inlet and outlet connections. Install vertically with cartridges hanging down and allow 2.5 inches clearance below for easy cartridge replacement.
What's Included
- High Flow CSR Plus-XC2 filtration system with mounting hardware
- XC2 replacement cartridge (EV9613-10)
- EC210 prefilter cartridge (EV9534-26)
- SS-IMF scale inhibition cartridge (EV9799-32)
- 9-gallon surge tank (EV3065-20)
- Installation and operation instructions
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
