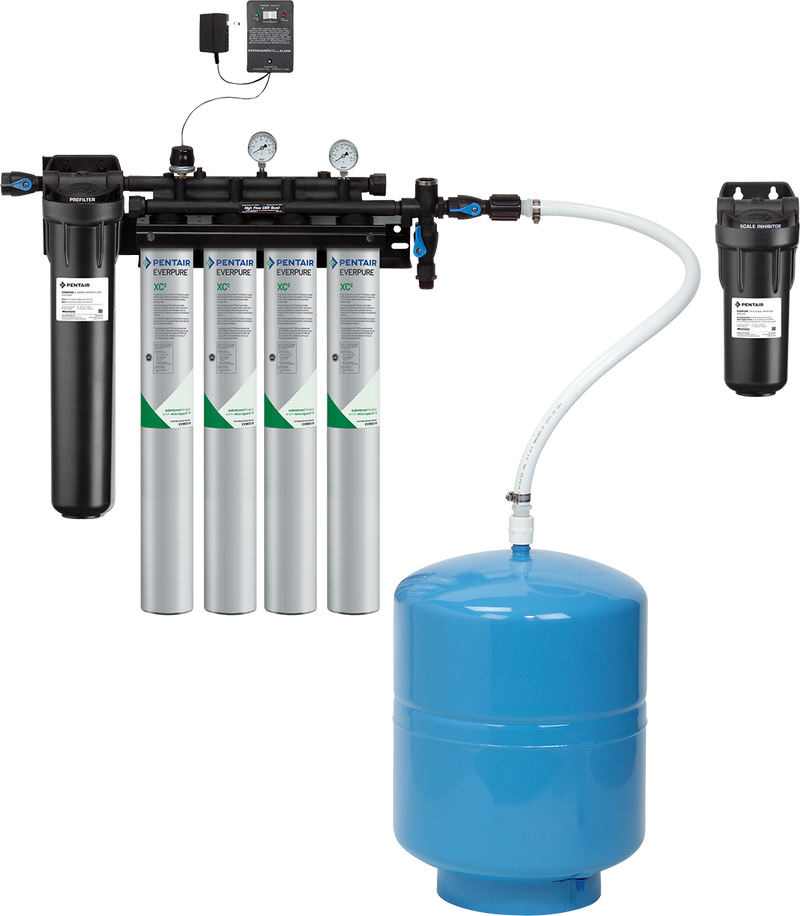

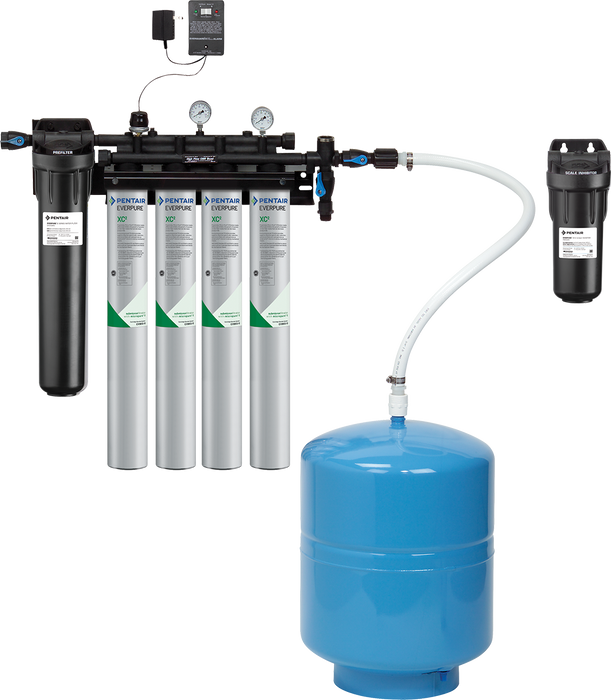

Everpure High Flow CSR Plus-XC2 with LPA (EV934721) Water Filtration System
The Pentair Everpure EV934721 High Flow CSR Plus-XC2 with Low Pressure Alarm delivers premium quality water for combination applications including coffee brewers, ice machines, and fountain equipment, featuring a 9-gallon surge tank and 48,000-gallon capacity to handle high-volume installations with extreme water conditions.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV934721 |
| Filtration Capacity | 48,000 gallons (181,699 L) |
| Flow Rate | Maximum 6.7 GPM (25.4 Lpm) |
| Micron Rating | 0.5 micron |
| Contaminants Filtered | Chlorine taste & odor, particulates, cysts (Cryptosporidium & Giardia) |
| NSF Certifications | NSF/ANSI Standards 42 and 53 |
Key Features
- ✓ Combination Application Design: Single system provides filtered water to fountain equipment, coffee brewers, and ice machines simultaneously
- ✓ Low Pressure Alarm (LPA): 110V electronic monitoring system alerts users when cartridges need changing or when pressure falls below 10 psi
- ✓ 9-Gallon Surge Tank: Included tank handles peak demand flow requirements for high-volume installations
- ✓ Micro-Pure II Filtration Media: Proprietary technology inhibits bacteria growth on filter media and reduces particles as small as 0.5 micron by mechanical means
- ✓ Scale Inhibition System: Remote-mounted SR-X System with SS-IMF Cartridge prevents limescale buildup in ice machines and coffee brewers
- ✓ 20" EC210 Prefilter: Captures larger dirt particles before primary filtration to extend cartridge life and maintain consistent water quality
FAQ
Q: How often should the cartridges be replaced on the EV934721 system?
A: Change cartridges every six (6) months as part of a preventative maintenance program, or when the 48,000-gallon capacity is reached, or when pressure falls below 10 psi. The SS-IMF Cartridge should be changed before the Hydroblend compound is completely used up, and the prefilter cartridge should be changed when excessively dirty.
Q: What type of water line and connections are required for installation?
A: The EV934721 requires a 3/4" water line with 3/4" FNPT inlet and outlet connections. Fountain equipment connects to the outlet before the SR-X System, while coffee brewer and ice machine connections are made after the SR-X Feeder using a tee fitting. The system must be installed vertically with cartridges hanging down.
Q: What contaminants does this system remove and what certifications does it have?
A: The EV934721 is NSF/ANSI Standard 42 certified for chlorine taste and odor reduction and nominal particulate Class I filtration. It's also NSF/ANSI Standard 53 certified for mechanical filtration of cysts including Cryptosporidium and Giardia. The system filters particles down to 0.5 micron and inhibits limescale buildup.
What's Included
- High Flow CSR Plus-XC2 filtration system with mounting bracket
- XC² replacement cartridge (EV9613-10)
- EC210 prefilter cartridge (EV9534-26)
- SS-IMF scale inhibitor cartridge (EV9799-32)
- 9-gallon surge tank (EV3065-20)
- 110V Low Pressure Alarm (LPA) system
- Remote-mounted SR-X System
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
