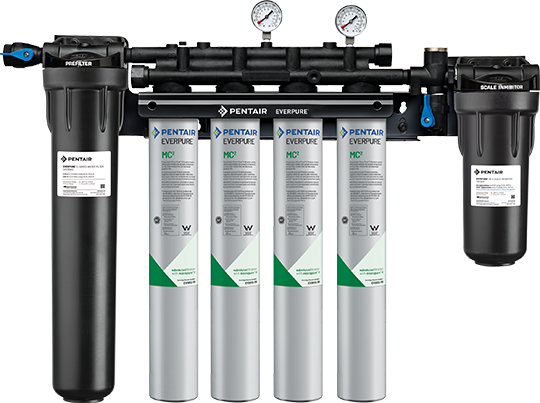

Everpure High Flow CSR Quad-MC2 System (EV9437-10)
The Everpure High Flow CSR Quad-MC2 System (EV9437-10) delivers premium quality water for high-volume commercial applications, combining advanced filtration with scale inhibition technology to serve fountain beverages, coffee brewers, and ice machines simultaneously with exceptional performance and capacity.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV9437-10 |
| Filtration Capacity | 36,000 gallons (136,274 L) |
| Flow Rate | Maximum 6.7 gpm (25.4 Lpm) |
| Contaminants Filtered | Chlorine taste & odor, cysts (Cryptosporidium & Giardia), particulates down to 0.2 micron |
| Applications | Up to 4 carbonators, 4-pot coffee brewer, 1,200 lb ice machine |
Key Features
- ā Multi-Application Design: One comprehensive system provides premium quality water to fountain, coffee, and ice machines simultaneously for versatile commercial use
- ā Advanced Micro-Pure II Technology: Proprietary filtration media effectively inhibits bacterial growth on filter media, extending product life and maintaining water quality
- ā Superior Filtration Performance: Exclusive precoat filtration reduces particles as small as 0.2 micron by mechanical means while eliminating chlorine taste and odor
- ā Scale Inhibition Technology: Integrated SR-X with SS-IMF cartridge prevents scale buildup in ice machines and coffee brewers, protecting equipment and improving efficiency
- ā Sanitary Cartridge Replacement: Quick-change design ensures internal filter components are never exposed to handling or contamination during maintenance
- ā NSF/ANSI Certified: Independently tested and certified against Standards 42 and 53 for aesthetic and health effects, including cyst reduction
FAQ
Q: How often should I replace the cartridges in the EV9437-10 system?
A: Replace filter cartridges on a regular six-month preventative maintenance program, or when capacity is reached, or when pressure falls below 10 psi. The SS-IMF cartridge should be changed before the Hydroblend compound is completely used up, and the prefilter should be replaced when excessively dirty.
Q: What equipment can this system support simultaneously?
A: The EV9437-10 is designed for high-volume installations and can support up to four carbonators combined with a four-pot coffee brewer and a 1,200 lb ice machine, making it ideal for busy commercial foodservice operations.
Q: What are the installation requirements for the High Flow CSR Quad-MC2 System?
A: The system requires a 3/4" water line, operates within 10-125 psi pressure range, and should be installed vertically with cartridges hanging down. Allow 2.5" clearance below for easy cartridge replacement. Fountain connections are made before the SR-X system, while coffee and ice machine connections require a tee after the SR-X feeder.
What's Included
- High Flow CSR Quad-MC2 System (EV9437-10)
- MC2 Replacement Cartridge (EV9612-56)
- EC210 Prefilter Cartridge (EV9534-26)
- SS-IMF Cartridge (EV9799-32)
- Installation hardware and mounting components
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
