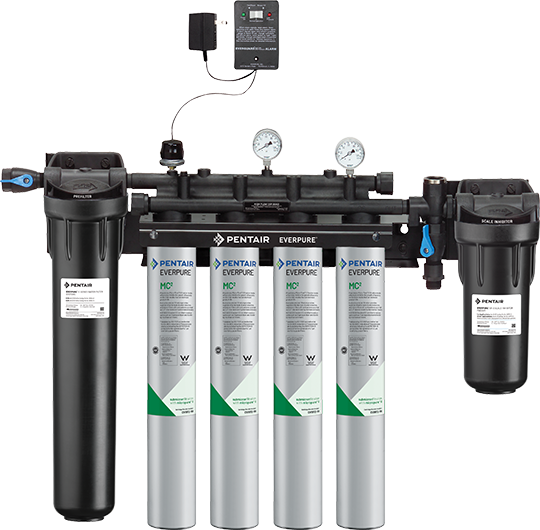

Everpure High Flow CSR Quad-MC2 System with LPA (EV943711)
The Everpure High Flow CSR Quad-MC2 System with LPA delivers premium quality water for high-volume foodservice operations, featuring advanced 0.2-micron filtration, scale inhibition technology, and an integrated low pressure alarm to support multiple carbonators, coffee brewers, and ice machines simultaneously.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV943711 |
| Filtration Capacity | 36,000 gallons (136,274 L) |
| Number of Filters | 4 (MC2, EC210 Prefilter, SS-IMF, SR-X Feeder) |
| Flow Rate | Maximum 6.7 GPM (25.4 LPM) |
| Micron Rating | 0.2 micron |
| Contaminants Filtered | Chlorine, taste & odor, cysts (Cryptosporidium & Giardia), particulates, bacteria growth inhibition |
Key Features
- ā Exclusive Precoat Filtration: Utilizes Micro-Pure II media for superior chlorine taste and odor reduction while mechanically filtering particles as small as 0.2 microns
- ā Low Pressure Alarm (LPA): Built-in 110V alarm system signals when cartridges need changing, preventing equipment damage and ensuring consistent water quality
- ā Scale Inhibition Technology: SR-X system with SS-IMF cartridge and Hydroblend compound inhibits scale buildup in ice machines and coffee brewers, extending equipment life
- ā NSF/ANSI Certified: Tested and certified under Standards 42 and 53 for aesthetic effects and health effects, including mechanical reduction of cysts
- ā Sanitary Cartridge Replacement: Quick-change design keeps internal filter components sealed during replacement, preventing contamination and simplifying maintenance
- ā High-Volume Capacity: Supports up to four carbonators combined with a four-pot coffee brewer and 1,200 lb ice machine for demanding commercial applications
FAQ
Q: What applications is the High Flow CSR Quad-MC2 System with LPA designed for?
A: This system is specifically designed for high-volume foodservice operations requiring simultaneous water filtration for multiple equipment types, including up to four carbonators, a four-pot coffee brewer, and ice machines up to 1,200 pounds capacity. It delivers premium quality water for fountain beverages, coffee, tea, and ice production.
Q: How often should cartridges be changed in the EV943711 system?
A: Cartridges should be changed on a regular six-month preventative maintenance schedule, when the 36,000-gallon capacity is reached, or when pressure falls below 10 psi (0.7 bar). The SS-IMF cartridge should be changed before the Hydroblend compound is completely used up, and the prefilter cartridge should be replaced when excessively dirty. The integrated low pressure alarm will signal when changes are needed.
Q: What are the installation requirements for this system?
A: The system requires a 3/4" water line connection and must be installed vertically with cartridges hanging down. Allow 2.5 inches clearance below cartridges for easy replacement. The mounting location must support the full operating weight of 58 lbs. Fountain connections are made to the outlet before the SR-X system, while coffee brewer and ice machine connections require a tee after the SR-X feeder. The low pressure alarm requires a 110V electrical connection.
What's Included
- High Flow CSR Quad-MC2 System Head with Low Pressure Alarm (110V)
- MC2 Replacement Cartridge (EV9612-56)
- EC210 Prefilter Cartridge (EV9534-26)
- SS-IMF Scale Inhibition Cartridge (EV9799-32)
- SR-X Feeder System with Hydroblend Compound
- Mounting Hardware and Installation Instructions
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
