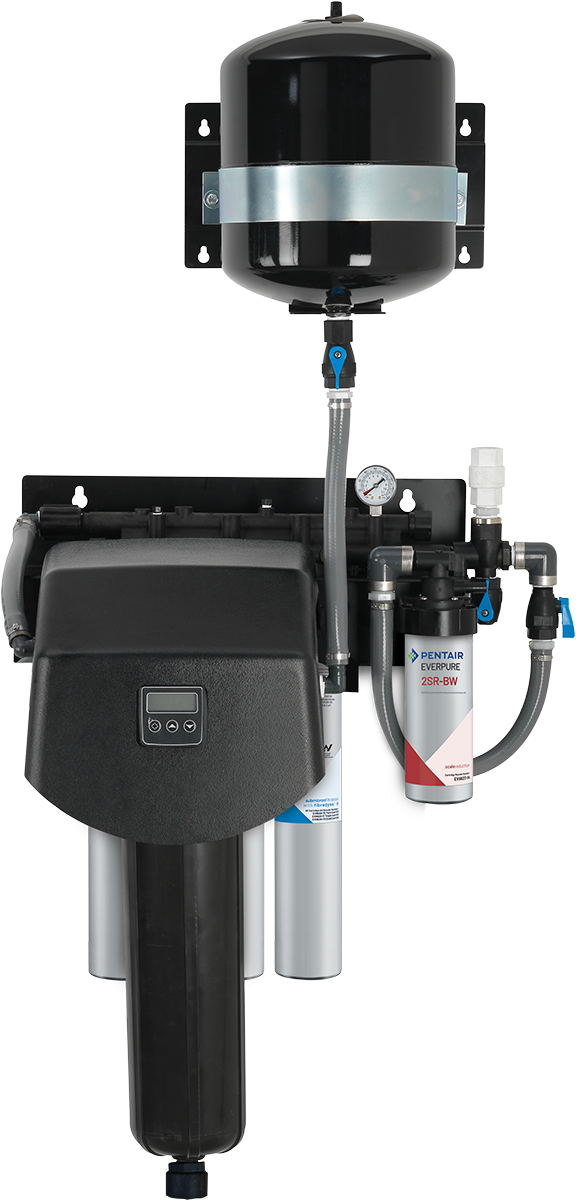

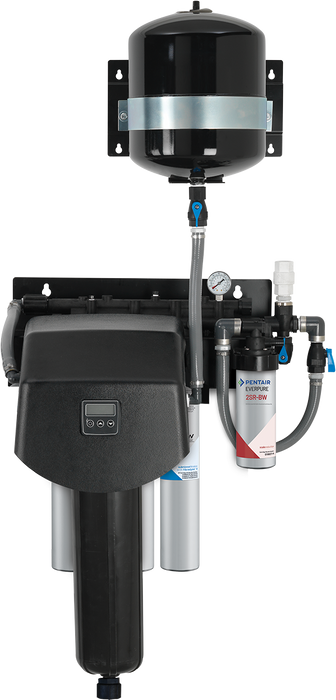

Everpure Endurance SC High Flow Triple 1.1 (EV943741) Water Filtration System
The Pentair Everpure Endurance SC High Flow Triple 1.1 system delivers exceptional water quality for high-volume foodservice operations with ultrafilter membrane-based pretreatment, 150,000-gallon capacity, and 11.25 gpm flow rate to ensure consistent performance across multiple equipment applications.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV943741 |
| Filtration Capacity | 150,000 gallons (567,812 L) or one year |
| Number of Filters | 3 SEN Cartridges, 1 HFUF Cartridge, 1 2SR-BW Cartridge |
| Flow Rate | 11.25 gpm (42.6 Lpm) |
| Micron Rating | 0.2 micron |
| Contaminants Filtered | Chlorine taste & odor, particulates, cysts (Cryptosporidium & Giardia), turbidity |
Key Features
- ✓ Hollow Fiber Ultrafilter Pretreatment: High-quality ultrafiltration membranes with forward and backward flushing remove submicron particulates and extend filter life up to three years
- ✓ Proprietary Fibredyne II Media: Provides superior chlorine taste and odor reduction while mechanically filtering particles as small as 0.2 micron and inhibiting bacterial growth on filter media
- ✓ 12-Month Cartridge Change Intervals: High-capacity design allows for convenient annual preventative maintenance schedules, reducing service frequency and operational costs
- ✓ 2SR-BW Scale Inhibitor System: Integrated feeder system provides effective scale reduction for up to one year, protecting ice machines and hot beverage equipment
- ✓ Dual Water Quality Outlets: System provides two separate water outlets for different quality requirements, ideal for carbonated beverages, ice, and hot beverage applications
- ✓ NSF/ANSI Certified: Tested and certified under NSF/ANSI Standards 42 and 53 for aesthetic effects and health effects including cyst reduction by mechanical means
FAQ
Q: What is the operating weight of the Endurance SC High Flow Triple 1.1 system when installed?
A: The system weighs approximately 70.0 lbs (31.7 kgs) without the storage tank, and the full operating weight is 111.5 lbs (50.6 kgs) including the tank when filled with water. Ensure the mounting surface can safely support this weight.
Q: How often does the hollow fiber ultrafilter (HFUF) cartridge need replacement?
A: The HFUF hollow fiber ultrafilter has an approximate service life of three years. The system's automatic backflushing function helps maintain membrane performance throughout this period, while the SEN cartridges require annual replacement.
Q: What electrical requirements does the Endurance SC High Flow Triple 1.1 system need?
A: The system requires a standard unswitched electrical outlet with 100-240 VAC/50-60 Hz input. The included 24 VDC, 2.7 Amp adapter has a five-foot cord and powers the automated backflushing controller with international plug compatibility.
What's Included
- 1 Manifold with mounting bracket
- 1 Shroud
- 1 Hollow Fiber Ultrafilter (HFUF) cartridge pre-installed in housing
- 1 Pretreatment housing with wrench
- 1 2SR-BW scale inhibiting cartridge
- 3 SEN fine filter cartridges
- 1 Storage tank assembly with 3/4" hose (15 inches)
- 2 pieces of 3/8" tubing (12-foot lengths) for flushing
- 1 Electrical adapter (attached to controller)
- 2 Bagged O-rings with silicone grease packets
- 1 Bag with Oetiker clamps and plastic snap grips
- 1 Port plug for SEN cartridge
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
