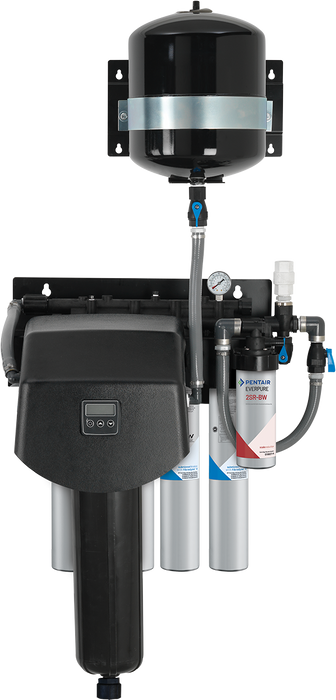

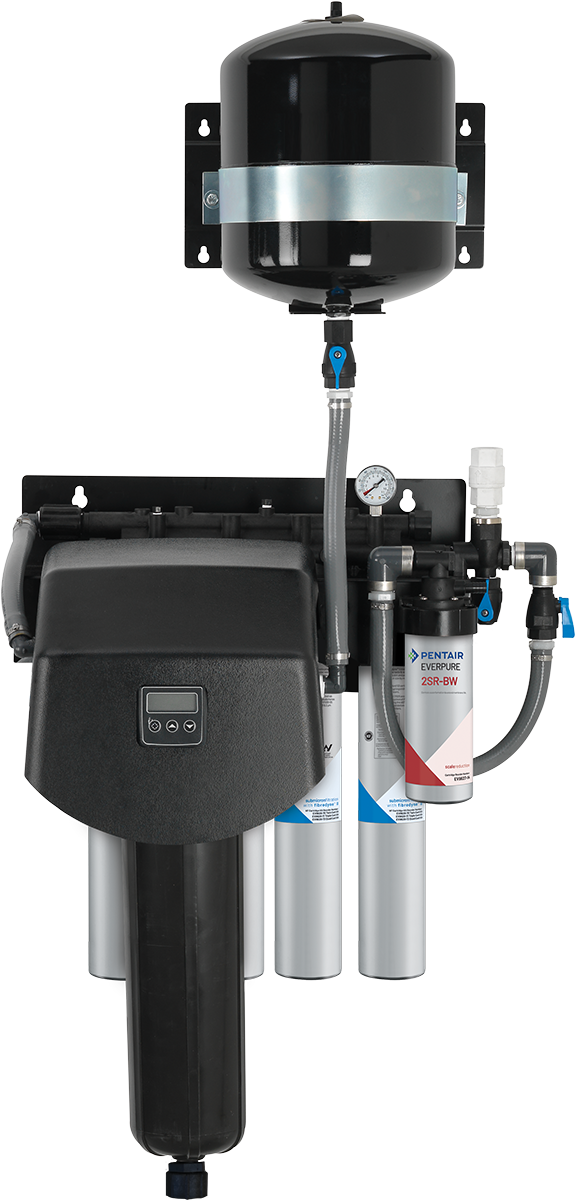

Everpure Endurance SC High Flow Quad 1.1 System (EV943742)
The Pentair Everpure Endurance SC High Flow Quad 1.1 System (EV943742) delivers exceptional water filtration for high-volume foodservice applications, featuring ultrafiltration hollow fiber membranes and proprietary Fibredyne II media that reduces particulates to 0.2 microns while providing 200,000-gallon capacity with 15 GPM flow rate, ensuring reliable performance for multiple equipment installations requiring consistent, quality water.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV943742 - Endurance SC High Flow Quad 1.1 |
| Filtration Capacity | 200,000 gallons (757,082 L) or one year |
| Flow Rate | 15 GPM (56.8 Lpm) |
| Micron Rating | 0.2 micron nominal particulate filtration |
| Contaminants Filtered | Cysts (Cryptosporidium & Giardia), microplastics, chlorine taste & odor, turbidity, particulates |
| NSF Certifications | NSF/ANSI Standards 42, 53, and 401 |
Key Features
- ✓ High Capacity Performance: 200,000-gallon capacity allows for 12-month estimated cartridge change-outs, reducing maintenance frequency and operational costs in high-volume installations
- ✓ Ultrafiltration Technology: Hollow fiber membranes reduce particle contaminants and ensure reliable, efficient operation while meeting NSF/ANSI Standard 53 for cyst reduction
- ✓ Proprietary Fibredyne II Media: Advanced filtration media provides superior chlorine taste and odor reduction while micro-filtering dirt and particles as small as 0.2 microns
- ✓ Bacteriostatic Protection: Filtration media inhibits bacterial growth within the filter to guard against media fouling and optimize long-term performance
- ✓ Scale Management System: Includes Everpure 2SR-BW feeder system to help minimize scale buildup, protecting coffee brewers and ice machines from mineral deposits
- ✓ NSF 401 Certified: Certified for microplastics reduction, addressing emerging contaminants and incidental compounds for enhanced water safety and quality
FAQ
Q: What types of foodservice applications is the EV943742 best suited for?
A: The Endurance SC High Flow Quad 1.1 is ideal for high-volume installations with multiple equipment needs, including coffee brewers, ice machines, and fountain beverage systems. Its 15 GPM flow rate and 200,000-gallon capacity make it perfect for restaurants, cafeterias, and convenience stores requiring consistent water quality across combination applications.
Q: How does the system connect to coffee brewers and ice machines versus fountain equipment?
A: Fountain equipment connections are made to the system outlet before the Everpure 2SR-BW feeder system, while coffee brewer and ice machine connections are made after the feeder system using a tee connection. This configuration ensures proper scale management for equipment that benefits from scale inhibition.
Q: What replacement parts are needed and how often should maintenance be performed?
A: The system requires the Endurance SC Quad 1.1 Cartridge Kit (EV9628-72) replacement every 200,000 gallons or annually, whichever comes first. The UF Membrane Pretreatment Filter (EV9628-91) may also need periodic replacement. The system's high capacity design minimizes downtime and reduces annual maintenance requirements compared to lower-capacity systems.
What's Included
- Endurance SC High Flow Quad 1.1 filtration system with four filter cartridges
- Everpure 2SR-BW feeder system for scale management
- Wall-mounting frame designed for 16" center installation
- International electrical plugs (100-240 VAC / 50-60 Hz compatible)
- Installation hardware and connection fittings
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
