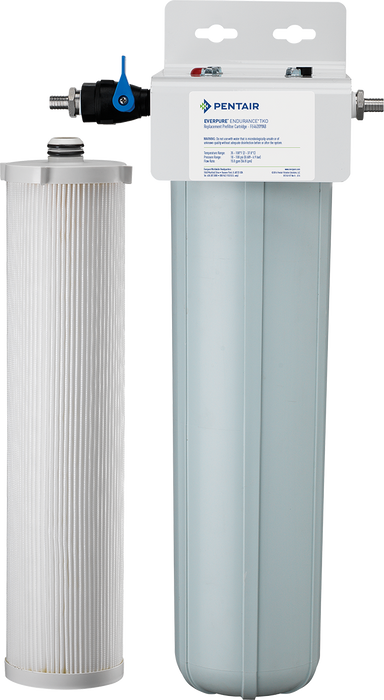

Everpure Endurance TKO MicroFilter Pretreatment System (EV943750)
The Everpure Endurance TKO MicroFilter Pretreatment System (EV943750) is a high-capacity filtration solution designed for high-volume foodservice applications, featuring a pleated microfilter cartridge with 0.65-micron nominal filtration that delivers 12 times the surface area of typical prefilters to effectively extend the life of primary fine filters while removing dirt and rust particles.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Endurance TKO MicroFilter Pretreatment |
| Flow Rate | 15.0 GPM (56.8 LPM) |
| Micron Rating | 0.65 Micron Nominal |
| Contaminants Filtered | Dirt, Rust, Sediment Particles |
Key Features
- ✓ Superior Surface Area: Pleated TKO microfilter cartridge provides 12 times more surface area than typical 20" slim spunbond-type prefilters for extended service life
- ✓ High-Capacity Filtration: 0.65-micron nominal filtration effectively removes dirt and rust particles to protect downstream equipment
- ✓ Durable Bowl Design: Robust construction makes cartridge change-outs easy to handle while maintaining system integrity
- ✓ High Flow Performance: Maximum service flow rate of 15.0 GPM (56.8 LPM) handles demanding high-volume foodservice applications
- ✓ NSF Certified Quality: Tested and certified by NSF International to NSF/ANSI Standard 42 for materials and structural integrity requirements
- ✓ Extended Primary Filter Life: Effective pretreatment significantly extends the service life of downstream fine filters, reducing maintenance costs
FAQ
Q: What is the recommended installation configuration for the Endurance TKO system?
A: The system should be installed vertically with the bowl hanging down, using 3/4" water line connections. Allow 2½" clearance below the cartridge for easy replacement, and keep tubing between the TKO and downstream equipment to less than 25 feet with minimal turns and fittings.
Q: How does the TKO MicroFilter compare to standard prefilters?
A: The TKO features a pleated microfilter design with 12 times the surface area of typical 20" slim spunbond-type prefilters, providing superior sediment capacity and longer service life while filtering to 0.65 microns nominal.
Q: What are the operating pressure and temperature requirements?
A: The system operates at 10-100 psi (0.689-6.9 bar) non-shock pressure and temperature range of 35-100°F (2-38°C), making it suitable for most foodservice water supply conditions.
What's Included
- EV9437-50 Endurance TKO MicroFilter Pretreatment System with Bowl
- FE4620YYAB Endurance TKO Replacement Cartridge (Pre-installed)
- Mounting Brackets with Template Holes
- O-Ring Seal
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
