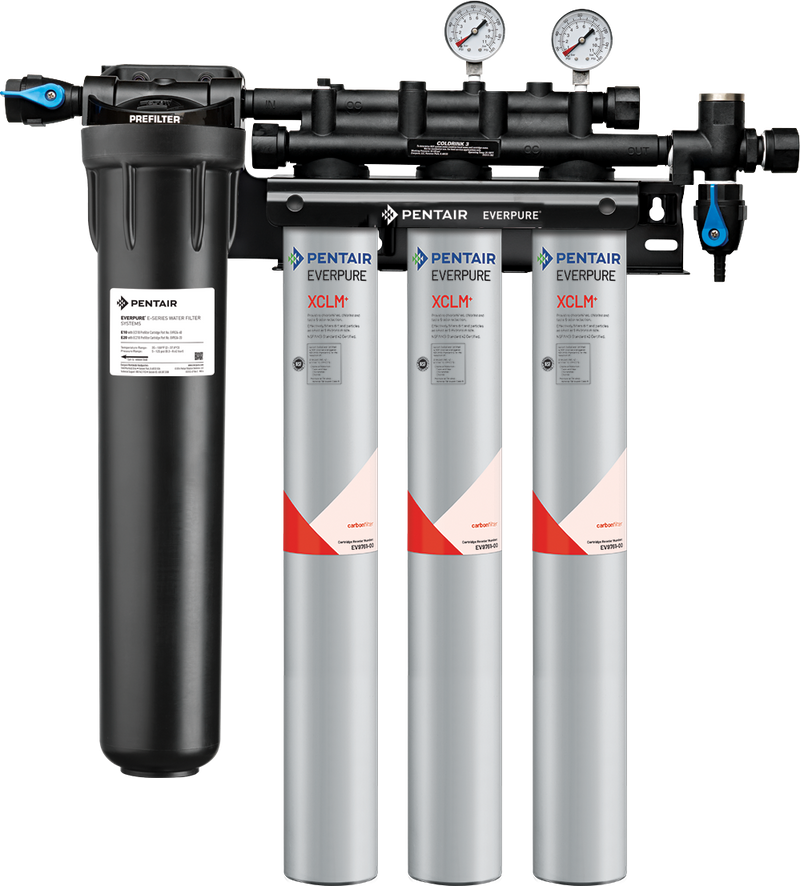

Everpure Coldrink 3-XCLM+ (EV976123) High Capacity Chloramines Reduction System
The Everpure Coldrink 3-XCLM+ system delivers exceptional chloramines reduction for fountain beverage applications with a high-capacity 27,900-gallon filtration capacity, featuring specialized carbon formulation and 5-micron particulate filtration that protects equipment while ensuring consistent beverage quality.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Coldrink 3-XCLM+ (EV976123) |
| Filtration Capacity | 27,900 gallons @ 6.00 GPM |
| Number of Filters | 3 Cartridges |
| Flow Rate | 6.00 GPM |
| Contaminants Filtered | Chloramines, Chlorine, Taste & Odor, Particulates (5 microns) |
Key Features
- ✓ Specialized Carbon Formulation: Maximizes activated carbon volume for optimal chloramines reduction and extended product life in a single cartridge design
- ✓ Superior 5-Micron Filtration: Filters dirt and particles as small as 5 microns, protecting drink system seals, pumps, tubing, and small orifices from clogging and wear
- ✓ Quick-Change System: Easy cartridge replacement with integrated manifold featuring water shut-off valve, flushing valve, and inlet/outlet pressure gauges for simplified maintenance
- ✓ NSF/ANSI Standard 42 Certified: Independently tested and certified for chlorine, chloramines, taste and odor reduction, and Class III particulate filtration
- ✓ 20" Prefilter Protection: Reduces dirt and particulate before reaching main filtration stage, extending overall system life and performance
- ✓ High-Capacity Performance: Provides up to 27,900 gallons of filtered water at 6.00 GPM, ideal for busy fountain beverage operations
FAQ
Q: How often should I change the cartridges on the Coldrink 3-XCLM+ system?
A: Cartridges should be changed on a regular one-year preventative maintenance program, or when the rated capacity of 27,900 gallons is reached, or when pressure decreases significantly as indicated by the pressure gauges.
Q: What is the proper installation procedure for the Coldrink 3-XCLM+ system?
A: The system should be installed vertically on a flat surface with cartridges hanging down, allowing 2½ inches of clearance below for easy cartridge replacement. After installation, flush the cartridges by running water through the system for five minutes at full flow.
Q: What are the pressure and temperature requirements for this system?
A: The Coldrink 3-XCLM+ operates within 10-125 psi (0.7-8.6 bar) non-shock pressure and 35-100°F (2-38°C) temperature range. No electrical connection is required for operation.
What's Included
- Coldrink 3-XCLM+ manifold system with integrated shut-off valve and pressure gauges
- Three (3) XCLM+ high-capacity chloramines reduction cartridges (EV9761-00)
- 20" prefilter for enhanced particulate reduction
- Inlet and outlet pressure gauges for monitoring
- Flushing valve for system maintenance
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
