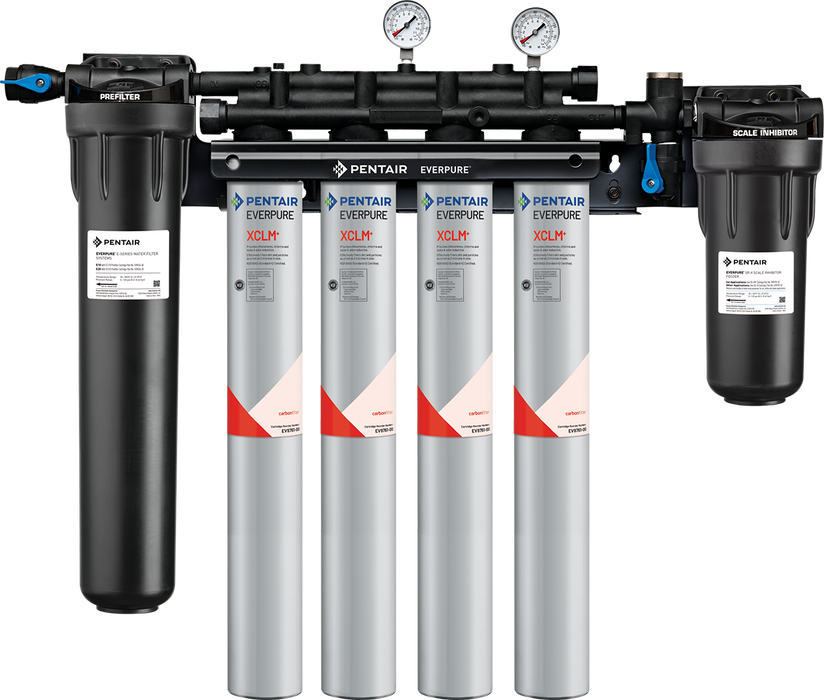

Everpure (EV976134) | High Flow CSR Quad-XCLM+ Water System, 37,200 Gal

by Pentair
Original price $1,664.61 - Original price $1,664.61
Original price
$1,664.61
$1,664.61 - $1,664.61
Current price $1,664.61
Buy Now

Everpure High Flow CSR Quad-XCLM+ (EV976134) Chloramines Reduction System

The Everpure High Flow CSR Quad-XCLM+ (EV976134) is a high-capacity water filtration system designed for commercial foodservice applications, featuring specialized carbon formulation that delivers superior chloramines and chlorine reduction while filtering particulates down to 5 microns, making it ideal for fountain dispensers, coffee makers, and ice machines in high-volume establishments.

Performance & Specifications

Feature Specification
Model Number High Flow CSR Quad-XCLM+
Filtration Capacity 37,200 gallons @ 8.0 gpm
Number of Filters 4-Cartridge System (Quad Configuration)
Flow Rate/s 8.0 gpm (30.28 Lpm) rated / up to 4.0 gpm
Contaminants Filtered Chloramines, Chlorine, Taste & Odor, Particulates (5 micron)

Key Features

  • Specialized Carbon Formulation: Maximizes activated carbon volume to provide optimal chloramines reduction with extended product life in a single cartridge system
  • High-Capacity Performance: Delivers 37,200 gallons of filtered water at 8.0 gpm service flow rate, perfect for high-volume commercial operations
  • Multi-Equipment Protection: Single system provides premium water quality to fountain dispensers, coffee makers, and ice machines simultaneously
  • Scale Inhibition Technology: SR-X with SS-IMF cartridge effectively inhibits scale buildup in ice machines and coffee brewers, extending equipment life
  • Quick-Change Cartridge Design: Easy cartridge replacement with 20" prefilter that reduces dirt and particulate matter efficiently
  • NSF/ANSI Standard 42 Certified: Independently tested and certified for reduction of chlorine, chloramines, taste, odor, and Class III particulates

FAQ


Q: How often should the cartridges be replaced in the EV976134 system?

A: Change cartridges on a regular one-year preventative maintenance program, or when the rated capacity of 37,200 gallons is reached, or when water pressure decreases noticeably. Regular replacement ensures consistent water quality and equipment protection.


Q: What are the pressure and temperature requirements for this system?

A: The EV976134 operates within a pressure range of 10-125 psi (0.7-8.6 bar) non-shock, and a temperature range of 35-100°F (2-38°C). No electrical connection is required for operation.


Q: How much clearance is needed for installation and cartridge replacement?

A: The system should be installed vertically on a flat surface with cartridges hanging down, requiring at least 2½ inches (6.35 cm) of clearance below the cartridges for easy cartridge replacement. Overall dimensions are 33.50" W x 6.9" D x 29.7" H.


What's Included

  • High Flow CSR Quad-XCLM+ manifold head assembly with mounting hardware
  • Four (4) XCLM+ chloramines reduction cartridges pre-installed
  • EC210 prefilter cartridge (EV9534-26) for particulate reduction
  • SS-IMF scale inhibition cartridge (EV9799-32) for equipment protection
  • 3/4" FNPT inlet and outlet connections
  • Installation and operation guide

Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.

Model Number: High Flow CSR Quad-XCLM+

Item Number: EV976134

Filtration Capacity (Rated): 37,200 gallons @ 8.0 gpm

Extended Capacity Options: 46,400 gal @ 6.68 gpm / 77,200 gal @ 4.0 gpm

Service Flow Rate: 8.0 gpm (30.28 Lpm)

Micron Rating: 5 micron nominal particulate

System Configuration: Quad (4-cartridge system)

NSF Certification: NSF/ANSI Standard 42

Inlet Connection: 3/4" FNPT

Outlet Connections: 3/4" FNPT (Fountain & Ice/Coffee)

Operating Pressure: 10-125 psi (0.7-8.6 bar)

Operating Temperature: 35-100°F (2-38°C)

Overall Dimensions: 33.5" W x 6.9" D x 29.7" H

Cartridge Replacement: EV9761-00 (XCLM+ cartridge)

Prefilter Cartridge: EV9534-26 (EC210)

Scale Inhibitor Cartridge: EV9799-32 (SS-IMF)

Electrical Requirement: None required

Installation Orientation: Vertical with cartridges down

Contaminant Reduction: Chloramines, chlorine, taste/odor

Warranty Coverage: 5-year system / 1-year cartridge

INSTALLATION

Install filter vertically. Allow space below for replacement. Insert into filter head and turn to lock. Flush thoroughly before first use. Contact professional if needed.

MAINTENANCE

Replace when flow slows or yearly. Flush new cartridge after installation. For ice machine use only. Contact service professional for performance issues.
