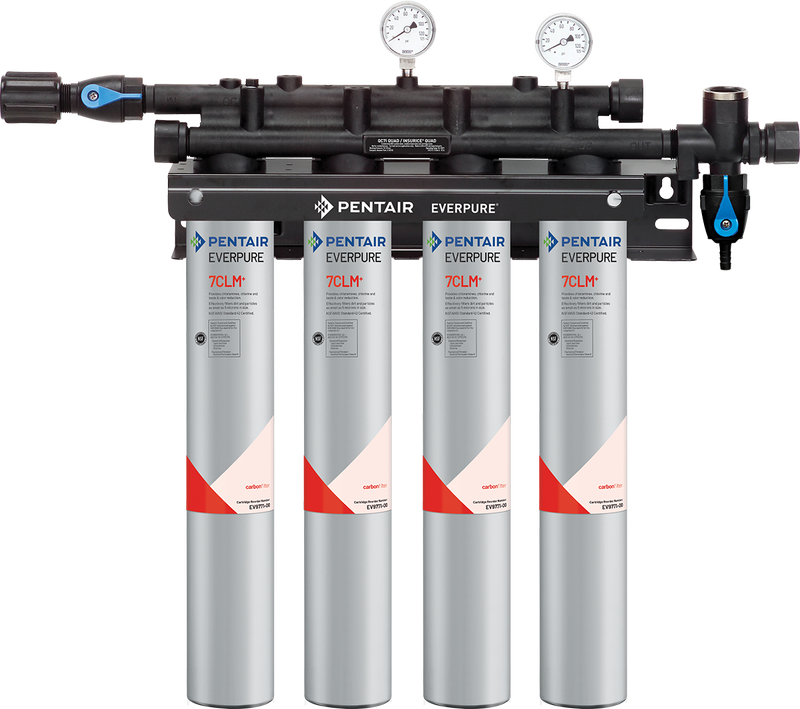

Everpure QC7I Quad-7CLM+ (EV977114) High Capacity Chloramines Reduction System
The Everpure QC7I Quad-7CLM+ (EV977114) is a high-capacity water filtration system designed for commercial fountain and beverage applications, featuring specialized carbon block technology that effectively reduces chloramines and chlorine taste & odors while filtering particles down to 5 microns, delivering up to 37,200 gallons of clean, great-tasting water with an impressive 8 GPM flow rate.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | QC7I Quad-7CLM+ |
| Filtration Capacity | 37,200 gallons (140,798 liters) |
| Number of Filters | 4 Cartridges (Quad System) |
| Flow Rate | 8 GPM (30.28 LPM) |
| Contaminants Filtered | Chloramines, Chlorine, Taste & Odor, Particulates (5 microns) |
Key Features
- ✓ Specialized Carbon Formulation: Maximizes activated carbon volume for superior chloramines reduction and extended product life in a single cartridge design
- ✓ High Capacity Performance: Delivers up to 37,200 gallons at 8 GPM, providing extended service life for high-volume commercial applications
- ✓ NSF/ANSI Standard 42 Certified: Independently tested and certified for aesthetic effects including chlorine, chloramines, taste and odor reduction, and Class III particulate filtration
- ✓ Quick-Change Cartridge System: Easy, tool-free cartridge replacement with convenient twist-and-lock mechanism minimizes downtime and maintenance costs
- ✓ 5 Micron Particle Filtration: Effectively removes dirt, sediment, and particles as small as 5 microns, protecting equipment and improving beverage quality
- ✓ Compact Quad Design: Space-efficient 24.96" x 5.8" x 24.98" footprint provides maximum filtration capacity without requiring excessive installation space
FAQ
Q: How often should I replace the cartridges in the EV977114 system?
A: Cartridges should be changed on a regular one-year preventative maintenance program or when the rated capacity of 37,200 gallons is reached, whichever comes first. If you notice a decrease in water pressure, this may also indicate it's time for cartridge replacement.
Q: What are the pressure and temperature requirements for this system?
A: The Everpure QC7I Quad-7CLM+ operates at pressure requirements of 10-125 psi (0.7-8.6 bar), non-shock, and is designed for water temperatures between 35-100°F (2-38°C). No electrical connection is required for operation.
Q: What is the difference between the various capacity ratings listed for this system?
A: The EV977114 offers multiple capacity ratings based on different flow rates: 30,000 gallons at 6.68 GPM (NSF certified), 38,000 gallons at 5.33 GPM, and 50,400 gallons at 4.00 GPM. The certified rating is 30,000 gallons at 6.68 GPM, while higher capacities at lower flow rates are not performance tested by NSF but represent extended cartridge life under reduced flow conditions.
What's Included
- QC7I Quad-7CLM+ system head with mounting bracket
- Four (4) EV9771-00 7CLM+ replacement cartridges pre-installed
- Installation and operation guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
