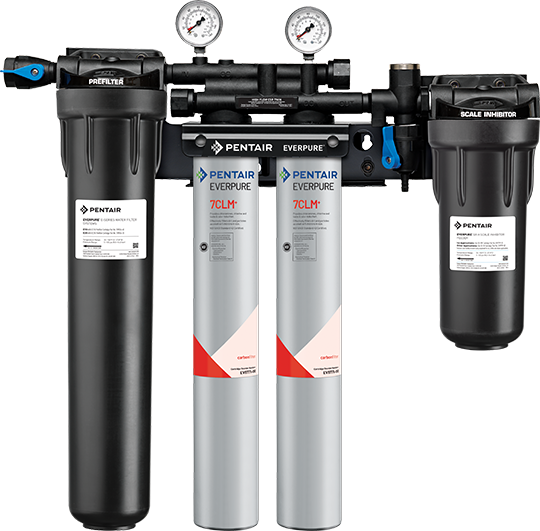

Everpure High Flow CSR Twin-7CLM+ (EV977132) Water Filtration System
The Everpure High Flow CSR Twin-7CLM+ (EV977132) is a high-capacity chloramines reduction system designed for fountain beverages, ice machines, and coffee brewers, delivering 15,000 gallons of filtered water with specialized carbon formulation that reduces chloramines, chlorine taste and odor, and particulates down to 5 microns while inhibiting scale buildup.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV977132 - High Flow CSR Twin-7CLM+ |
| Filtration Capacity | 15,000 gallons @ 3.34 GPM |
| Number of Filters | Twin cartridge configuration |
| Flow Rate | 3.34 GPM (12.64 LPM) |
| Micron Rating | 5 microns |
| Contaminants Filtered | Chloramines, chlorine taste & odor, particulates, scale inhibitor included |
Key Features
- ✓ Specialized Carbon Formulation: Maximizes activated carbon volume for optimal chloramines reduction with improved product life in a single cartridge
- ✓ 20" Prefilter Technology: Reduces dirt and particulate down to 5 microns, providing superior filtration for enhanced beverage quality
- ✓ SR-X with SS-IMF Cartridge: Inhibits scale buildup in ice machines and coffee brewers, extending equipment life and reducing maintenance costs
- ✓ Quick-Change Design: Easy cartridge replacement with simple vertical installation requiring only 2½" clearance below cartridges
- ✓ NSF/ANSI Standard 42 Certified: Independently tested and certified for aesthetic effects including chloramines, chlorine, taste and odor reduction, plus Class III particulate filtration
- ✓ High-Volume Applications: Ideal for multiple equipment installations and high-volume fountain, coffee, and ice machine operations
FAQ
Q: How often should the cartridges be replaced in the EV977132 system?
A: The cartridges should be changed on a regular one-year preventative maintenance program, or sooner when the 15,000-gallon capacity is reached or when water pressure decreases noticeably.
Q: What are the pressure and temperature requirements for installation?
A: The EV977132 requires water pressure between 10-125 psi (0.7-8.6 bar) and operates in temperatures from 35-100°F (2-38°C). No electrical connection is required for operation.
Q: Can this system be used for both fountain drinks and ice machines simultaneously?
A: Yes, the EV977132 features dual outlets (3/4" FNPT) - one dedicated for fountain applications and another for ice machines or coffee brewers, making it ideal for combination applications.
What's Included
- High Flow CSR Twin-7CLM+ manifold head
- Two 7CLM+ chloramines reduction cartridges
- SR-X with SS-IMF scale inhibitor cartridge
- Mounting bracket and hardware
- Installation and operation guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
