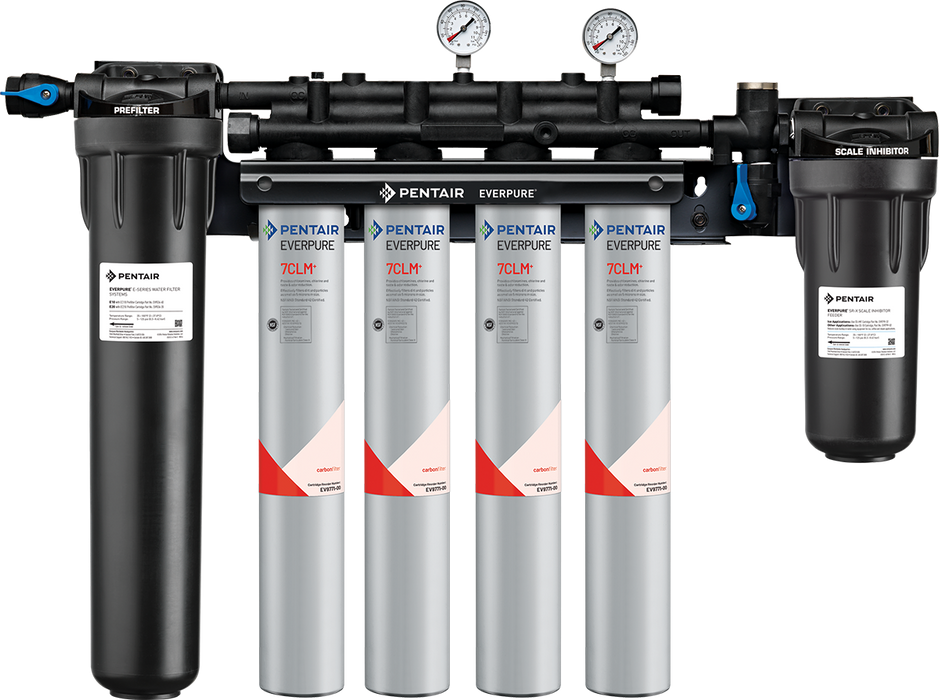

Everpure High Flow CSR Quad-7CLM+ (EV977134) Chloramines Reduction System
The Everpure EV977134 High Flow CSR Quad-7CLM+ is a high-capacity chloramines reduction system engineered for demanding foodservice applications including fountains, ice machines, and coffee brewers, featuring specialized carbon formulation with SR-X SS-IMF scale inhibitor technology to deliver 30,000 gallons of consistent, great-tasting water while protecting valuable equipment.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV977134 - High Flow CSR Quad-7CLM+ |
| Filtration Capacity | 30,000 gallons (113,562 L) at service flow |
| Number of Filters | 4 Cartridges (Quad System) |
| Flow Rate | 6.68 GPM (25.29 LPM) |
| Contaminants Filtered | Chloramines, Chlorine, Taste & Odor, Particulates (5 micron) |
Key Features
- ✓ Advanced Chloramines Reduction: Specialized carbon formulation maximizes activated carbon volume for optimal chloramines and chlorine taste & odor reduction
- ✓ Scale Inhibitor Technology: SR-X with SS-IMF cartridge actively inhibits scale buildup in ice machines and coffee brewers, extending equipment lifespan
- ✓ High-Capacity Prefiltration: 20-inch prefilter reduces dirt and particulate down to 5 microns while maintaining optimal flow rates for multiple equipment applications
- ✓ NSF/ANSI Standard 42 Certified: Independently tested and certified for aesthetic effects including taste, odor, chlorine, chloramines, and Class III particulate reduction
- ✓ Quick-Change Design: Easy cartridge replacement with vertical installation and minimal clearance requirements for simplified maintenance
- ✓ High Volume Performance: Rated at 6.68 GPM service flow with extended capacity options up to 50,400 gallons at reduced flow rates for versatile applications
FAQ
Q: How often should the cartridges be replaced in the EV977134 system?
A: Cartridges should be changed on a regular one-year preventative maintenance program or when the rated capacity of 30,000 gallons is reached, whichever comes first. Replace cartridges immediately if water pressure decreases significantly.
Q: What is the difference between service flow and the other flow rate capacities listed?
A: The EV977134 is NSF certified at 30,000 gallons at 6.68 GPM service flow. At reduced flow rates, the system can achieve extended capacities of 38,000 gallons at 5.33 GPM or 50,400 gallons at 4.00 GPM, though these extended capacities are not NSF performance tested or certified.
Q: Can the Everpure EV977134 system be installed in any orientation?
A: No, the system must be installed vertically on a flat surface with cartridges hanging downward. Allow at least 2.5 inches of clearance below the cartridges for easy cartridge replacement during maintenance.
What's Included
- High Flow CSR Quad-7CLM+ head unit with mounting bracket
- Four (4) 7CLM+ cartridges pre-installed
- Installation and operation guide with flushing instructions
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
