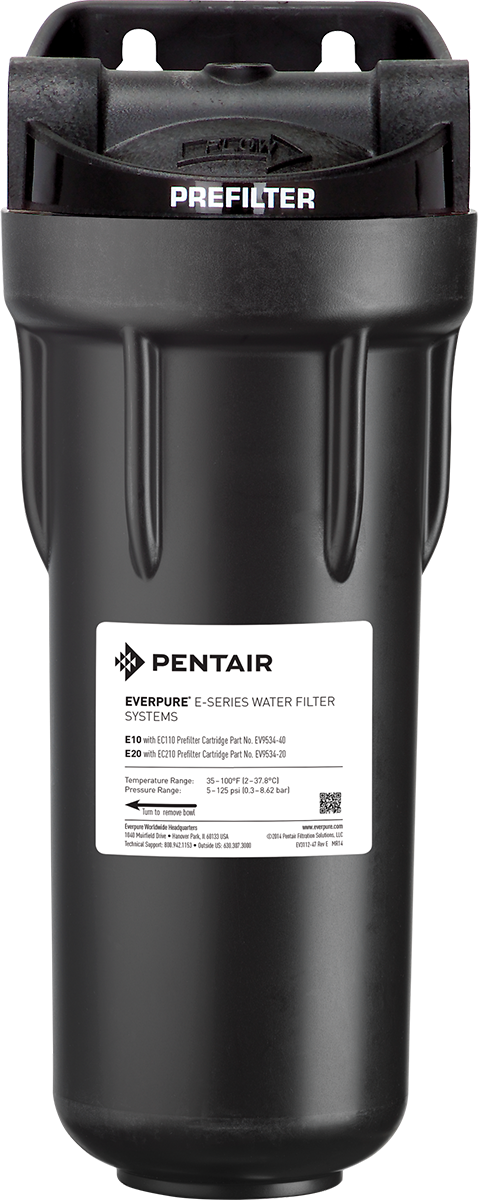

Everpure E-10 (EV979580) Prefilter System
The Pentair Everpure E-10 Prefilter System delivers reliable sediment filtration for foodservice applications, featuring a tightly spun 10-micron nominal cartridge that effectively removes dirt and rust particles to extend the life of primary filter cartridges and protect valuable equipment.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | E-10 (EV979580) |
| Flow Rate | Maximum 4.0 GPM (15 LPM) |
| Micron Rating | 10 Micron Nominal |
| Contaminants Filtered | Dirt, Rust, Sediment Particles |
Key Features
- ✓ 10-Micron Filtration: Tightly spun Everpure EC110 sediment cartridge effectively removes larger dirt and rust particles
- ✓ Extended Filter Life: Prefiltration reduces sediment load on primary filters, extending their operational lifespan
- ✓ Durable Slim Bowl Design: 10-inch bowl design accepts most standard 10-inch drop-in cartridges for versatile filtration needs
- ✓ Easy Maintenance: Simple cartridge change-outs with transparent housing for visual inspection of dirt accumulation
- ✓ High Flow Capacity: Supports service flow rates up to 4.0 GPM, suitable for demanding foodservice environments
- ✓ Compact Installation: Space-saving design at 12.44" H x 5.16" W x 5.5" D with 3/4" FNPT inlet and outlet connections
FAQ
Q: How do I know when to replace the EC110 prefilter cartridge?
A: Inspect the Everpure EC110 cartridge periodically through the housing. Replace the cartridge when dirt has visibly penetrated through to the inner core, or when you notice a significant reduction in water flow rate.
Q: What pressure and temperature ranges does the E-10 Prefilter System support?
A: The system operates within a pressure range of 10-125 psi (0.7-8.6 bar) non-shock, and a temperature range of 35-100°F (2-38°C), making it suitable for most foodservice water applications.
Q: Can the E-10 system accommodate other 10-inch cartridges besides the EC110?
A: Yes, the 10-inch bowl design is compatible with most standard 10-inch drop-in cartridges, allowing flexibility for different filtration requirements. Optional reducer bushings are included for various connection sizes.
What's Included
- E-10 Prefilter System with slim bowl housing
- Everpure EC110 Prefilter Cartridge (10-micron nominal)
- Optional reducer bushings for installation flexibility
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
