Everpure SR-X Scale Inhibitor System with Deliming Kit (EV979720)
The Pentair Everpure EV979720 SR-X Scale Inhibitor System is a complete solution designed to effectively reduce scale buildup and corrosion in commercial warewashing and steam equipment, featuring advanced Hydroblend compound technology and a comprehensive deliming kit for superior long-term protection.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | SR-X Scale Inhibitor System |
| Flow Rate | Maximum 6.0 GPM (22.7 LPM) |
| Pressure Range | 10-125 PSI (0.7-8.6 bar), non-shock |
| Temperature Range | 35-100°F (2-38°C) |
| NSF Certification | NSF/ANSI Standard 42 (Material Requirements) |
Key Features
- ✓ Complete System Design: Includes clear Everpure SR-X housing, SS-10 cartridge, dip tube assembly, and 2.2 lb ScaleKleen deliming package for comprehensive scale prevention
- ✓ Advanced Hydroblend Technology: Patented design dispenses controlled amounts of sophisticated polyphosphate compound, providing greater effectiveness than standard phosphate treatments
- ✓ Superior Performance in Harsh Conditions: SS-10 cartridge delivers enhanced protection in higher alkalinity, hardness, TDS, and temperature installations
- ✓ Dual Protection System: Effectively targets scale buildup while simultaneously providing robust protection against equipment corrosion
- ✓ Heavy-Duty Construction: Features 10" clear housing for easy visual inspection and 3/4" FNPT inlet/outlet connections for reliable installation
- ✓ Commercial-Grade Durability: Built to withstand demanding foodservice environments with NSF-certified materials and 5-year limited warranty on system components
FAQ
Q: How often should I replace the SS-10 cartridge in the EV979720 system?
A: The SS-10 cartridge should be inspected at least every six months and replaced before the Hydroblend compound is completely dissolved. Replacement timing depends on water quality and usage volume, but regular visual inspection through the clear housing makes monitoring easy.
Q: Is deliming required before installing the SR-X system on existing equipment?
A: While deliming prior to installation is recommended for optimal performance, it is not required. The included 2.2 lb ScaleKleen package can be used to remove pre-existing scale. Note that loose scale may come off after installation, so removing any debris will ensure satisfactory operation.
Q: Can the EV979720 be used with all types of steam equipment?
A: Yes, the system is specifically designed for steam applications. For proper installation, connect the system to the boiler water only—do not connect to the condenser. The system handles flow rates up to 6.0 GPM and operates effectively in temperatures from 35-100°F.

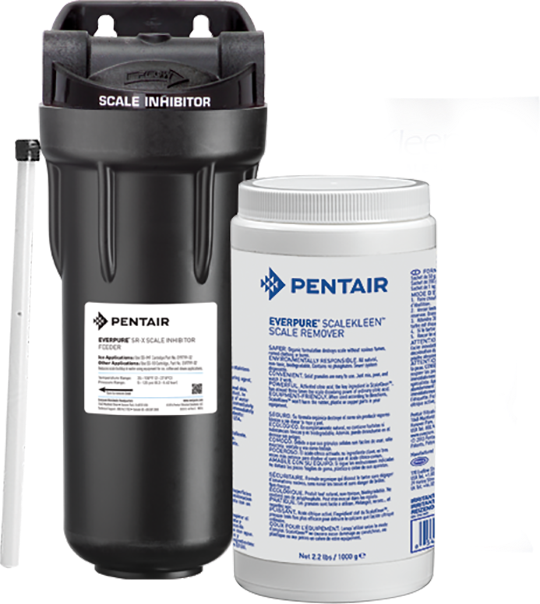

What's Included
- Clear Pentair Everpure SR-X 10" heavy-duty housing
- Pentair Everpure SS-10 replacement cartridge (EV9799-02)
- Dip tube assembly
- 2.2 lb Pentair Everpure ScaleKleen deliming package
- Hardness test strip
- Optional 3/4" reducer bushings
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
