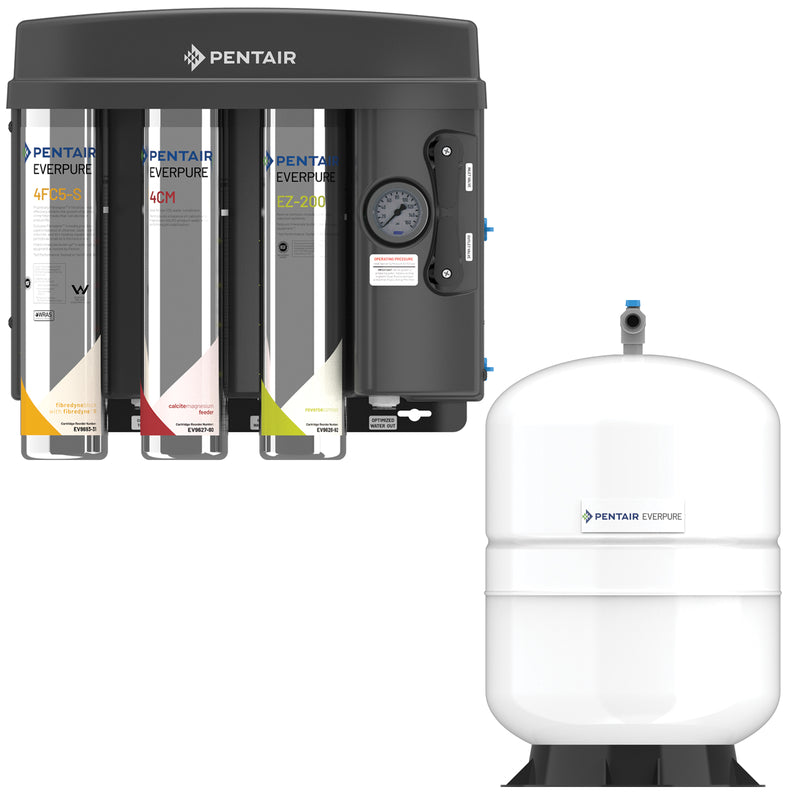

Everpure EZ-RO 200/5G (EV997552) Reverse Osmosis Water System
The Pentair Everpure EZ-RO 200/5G is a commercial reverse osmosis system designed to reduce total dissolved solids and protect steam equipment, featuring a compact all-in-one design with a 5-gallon hydropneumatic tank that delivers up to 200 gallons per day while saving up to two times more water than standard RO systems.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EZ-RO 200/5G (EV997552) |
| Daily Production Rate | Up to 200 GPD (757 L/day) |
| Tank Capacity | 5 Gallons (18.9 L) |
| Tank Type | Hydropneumatic (Sealed) |
| Water Recovery | Up to 50% (vs. 25% standard RO) |
| Contaminants Reduced | TDS, chlorine, sediment, hardness, chlorides |
Key Features
- ā All-In-One Design: Complete system includes prefilter, RO membrane, mineral addition cartridge, tubing, fittings, and mounting hardware with no additional SKUs needed
- ā 4CM Mineral Addition Technology: Proprietary cartridge provides optimal mineral content for proper conductivity sensor function on steam equipment while protecting against corrosion
- ā High Efficiency RO Membrane: Saves up to 2x more water than standard reverse osmosis systems with up to 50% water recovery compared to 25% in conventional systems
- ā Fibredyne II Filtration Media: Effectively inhibits bacterial growth on filter media while reducing sediment and chlorine to protect the RO membrane
- ā Compact & Expandable: Space-saving design can be wall-mounted, free-standing with optional floor stand, or installed under counter; upgradeable to larger capacity without replacing processor
- ā Built-In Service Features: Integrated bypass, sample port, flush valves, and pressure gauge speed installation and simplify filter cartridge replacement and maintenance
FAQ
Q: How often do the filter cartridges need to be replaced on the EZ-RO 200/5G?
A: The prefilter cartridge (4FC5-S) should be replaced every 6 months, the mineral addition cartridge (4CM) every 12 months, and the RO membrane (EZ-200) every 18-24 months depending on water conditions and usage.
Q: What are the water quality requirements for this system to operate properly?
A: Feed water must be cold (40-100Ā°F), with TDS up to 1000 ppm, pH 5-10, hardness under 12 grains per gallon, free chlorine less than 3 mg/L, and pressure between 50-100 psi. Water outside these parameters may require pretreatment or more frequent maintenance.
Q: Does the EZ-RO 200/5G require electricity to operate?
A: No, this system operates entirely on available water pressure and requires no electrical connection, making installation simpler and more flexible in various locations.
What's Included
- EZ-RO Processor with built-in bypass, flush valves, and pressure gauge
- 5-gallon hydropneumatic storage tank (10 psi precharge)
- 4FC5-S Prefilter cartridge (EV9693-31)
- EZ-200 RO membrane cartridge (EV9628-92)
- 4CM Mineral addition cartridge (EV9627-80)
- Installation kit with tubing (1/4", 3/8", 1/2"), push-to-connect fittings, and mounting hardware
- Installation and operation guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
