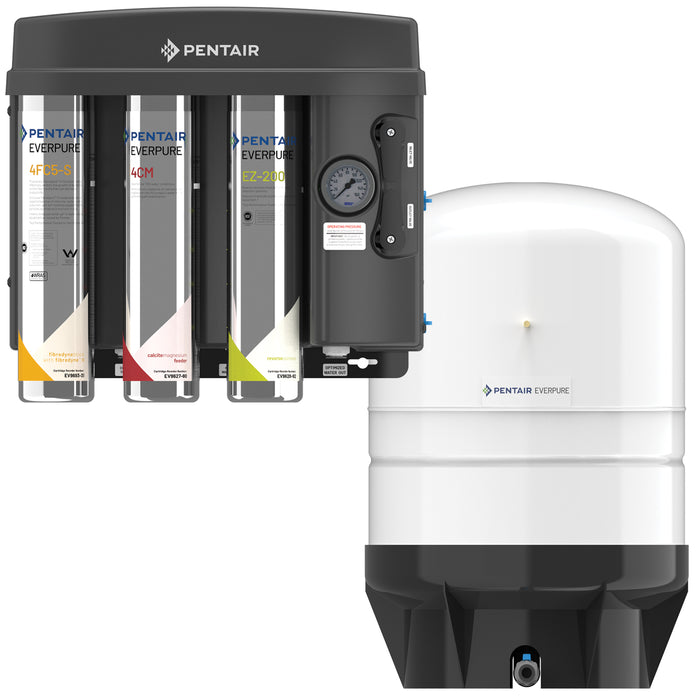

Everpure EZ-RO 200/10G (EV997553) Reverse Osmosis System
The Everpure EZ-RO 200/10G is a complete reverse osmosis water treatment system designed for commercial foodservice applications, featuring a 200 gallon per day production capacity with a 10-gallon hydropneumatic storage tank that reduces total dissolved solids, chlorine, and sediment to protect steam equipment while providing optimal mineral content for conductivity sensors.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EZ-RO 200/10G (EV997553) |
| Daily Production Rate | Up to 200 GPD (757 LPD) |
| Tank Capacity | 10 Gallons (37.8 L) |
| Tank Type | Hydropneumatic (Sealed, Pressurized) |
| Number of Filters | 3 (Prefilter, RO Membrane, Mineral Addition) |
| Contaminants Reduced | TDS, Chlorine, Sediment, Hardness, Chlorides |
| Water Recovery Rate | Up to 50% (High Efficiency) |
Key Features
- ✓ All-in-One System Design: Includes prefilter, RO membrane, mineral addition cartridge, 10-gallon tank, and complete installation kit with tubing and fittings—no additional SKUs required
- ✓ High Efficiency RO Membrane: Saves up to two times more water than standard RO systems with up to 50% recovery compared to typical 25% recovery systems
- ✓ Proprietary 4CM Mineral Addition: Provides optimal mineral content for proper function of conductivity sensors on steam equipment while protecting against corrosion
- ✓ Compact, Expandable Design: Space-saving 16.6" H x 17.4" W x 8.0" D processor can be wall-mounted, placed on optional floor stand, or installed under counter with room to upgrade to larger capacity tanks
- ✓ Built-in Service Features: Integrated bypass valve, flush valve, sample port, and pressure gauge speed installation and simplify maintenance procedures
- ✓ NSF Certified Performance: Tested and certified by NSF International against NSF/ANSI 58 and CSA B483.1 for reduction of total dissolved solids
FAQ
Q: How long does it take to install the EZ-RO 200/10G system?
A: Once the installation area is prepared with proper water supply, drain access, and mounting location, the EZ-RO 200/10G can be installed in 45-60 minutes. Note that installation time does not include the required cartridge flushing process, which involves approximately 5 minutes for prefilter and mineral cartridge flushing, plus a minimum 1-hour (up to 24-hour per NSF requirements) RO membrane flush.
Q: What water quality conditions are required for the system to operate properly?
A: The feed water must meet specific parameters: TDS up to 1000 ppm, pH 5-10, hardness less than 12 grains per gallon, free chlorine under 3.0 mg/L, turbidity under 1.0 NTU, iron under 0.1 mg/L, manganese under 0.05 mg/L, zero hydrogen sulfide, and silica under 20 mg/L. Water supply pressure should be 50-100 psi with temperature between 40-100°F. Operating outside these parameters may lead to premature membrane failure and void the warranty.
Q: How often do the filter cartridges need to be replaced?
A: The prefilter (4FC5-S) should be replaced every 6 months, the mineral addition cartridge (4CM) every 12 months, and the RO membrane (EZ-200) every 18-24 months. Replacement frequency may vary based on water quality and usage volume. Product water should be tested periodically to verify proper system performance.
What's Included
- EZ-RO 200/10G Processor with built-in bypass, flush valve, and pressure gauge
- 10-gallon hydropneumatic storage tank with 10 psi precharge
- Prefilter cartridge (4FC5-S) with Fibredyne II media
- EZ-200 reverse osmosis membrane cartridge
- 4CM mineral addition cartridge
- Complete installation kit with 1/4", 3/8", and 1/2" tubing and push-to-connect fittings
- Wall mounting hardware (anchors for drywall with wood studs)
- Installation and Operation Guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
