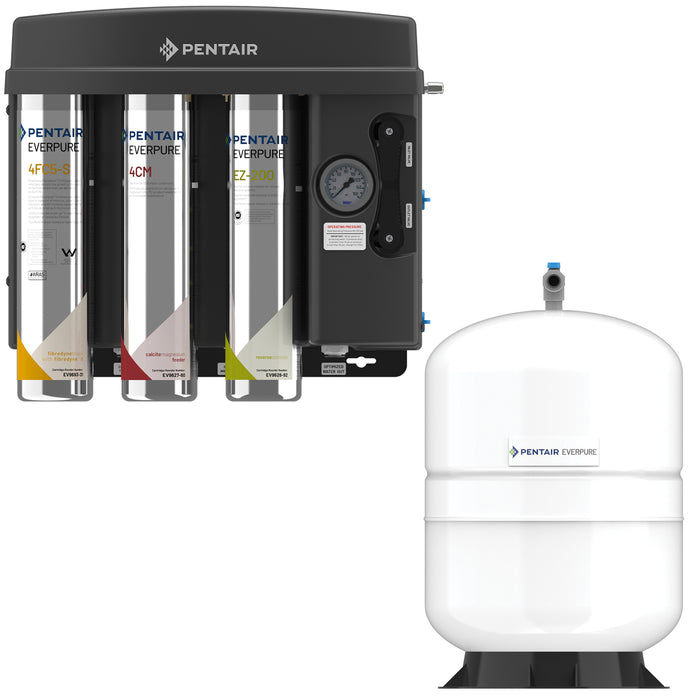

Everpure EZ-RO 200/5G-BL (EV997560) Blended Reverse Osmosis System
The Pentair Everpure EZ-RO 200/5G-BL is an all-in-one commercial reverse osmosis system that delivers up to 200 gallons per day of optimized water with a 5-gallon hydropneumatic storage tank, featuring proprietary blending technology and remineralization to customize TDS levels for perfect espresso, coffee, and tea extraction while protecting valuable equipment.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EZ-RO 200/5G-BL |
| Daily Production Rate | Up to 200 gal/day (757 L/day) |
| Tank Capacity | 5 gallons (18.9 L) |
| Tank Type | Hydropneumatic (sealed, pressurized) |
| Water Recovery Rate | Up to 50% (high efficiency) |
| Contaminants Reduced | Total Dissolved Solids, chlorine, sediment, hardness minerals, chlorides |
Key Features
- ā Precision Blending Technology: Stainless steel blend valve with built-in TDS meter allows customization of total dissolved solids for optimal espresso, coffee, and tea extraction profiles
- ā 4CM Remineralization Cartridge: Adds back essential calcium and magnesium minerals for improved beverage extraction and taste enhancement
- ā High Efficiency RO Membrane: Saves up to two times more water than standard RO systems with up to 50% water recovery versus typical 25% recovery rates
- ā Fibredyne II Prefilter Technology: Proprietary filtration media effectively inhibits bacterial growth on filter media while reducing sediment and chlorine to protect the RO membrane
- ā Compact All-In-One Design: Wall-mountable unit with built-in bypass, sample port, and flush valves speeds installation and maintenance in tight spaces under counters
- ā Complete Installation Kit: Includes all necessary tubing, fittings, and mounting hardware with high flow 1/2" OD optimized water line to equipment
FAQ
Q: How far can the hydropneumatic tank be located from the processor unit?
A: The 5-gallon hydropneumatic tank must be located no further than 10 feet from the RO processor due to tubing connections. Ensure the floor beneath the tank is smooth, clean, and free of sharp objects that could damage the tank bottom.
Q: How often do the filter cartridges need to be replaced on the EZ-RO 200/5G-BL?
A: The prefilter cartridge (4FC5-S) should be replaced every 6 months, the mineral addition cartridge (4CM) every 12 months, and the RO membrane (EZ-200) every 18-24 months, or when capacity is reached or flow becomes inadequate.
Q: Does the EZ-RO 200/5G-BL system require electricity to operate?
A: No, the EZ-RO 200/5G-BL operates on a non-electric design using available water pressure (50-100 psi required). Only atmospheric tank models in the EZ-RO series require electrical connection; hydropneumatic models like this one do not.
What's Included
- EZ-RO Processor with mounting bracket and plug
- 5-gallon hydropneumatic storage tank assembly
- 4FC5-S Prefilter cartridge
- 4CM Mineral addition cartridge
- EZ-200 RO membrane cartridge
- Complete installation kit with tubing, push-to-connect fittings, and hardware
- Installation and Operation Guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
