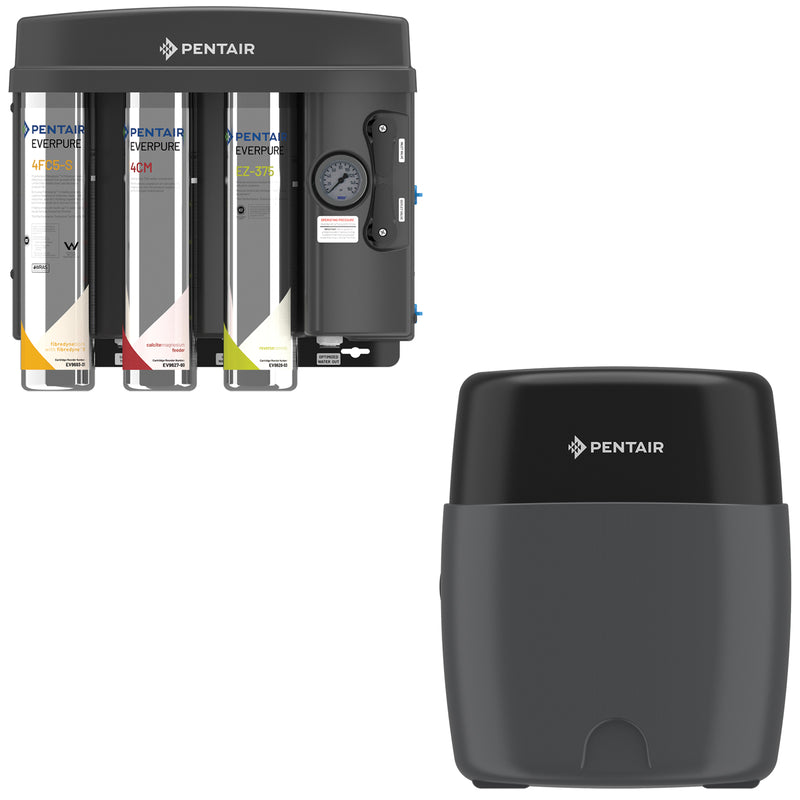

Everpure EZ-RO 375/16ATM (EV997567) Reverse Osmosis Water Filtration System
The Pentair Everpure EZ-RO 375/16ATM is a commercial-grade reverse osmosis system that delivers up to 375 gallons per day of optimized water with a 16-gallon atmospheric storage tank, engineered specifically for steam equipment applications including combi ovens, steamers, and proofers to significantly reduce scale, corrosion, and total dissolved solids while providing optimal mineral content for proper conductivity sensor function.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EZ-RO 375/16ATM (EV997567) |
| Daily Production Rate | Up to 375 gpd (1,419 L/day) |
| Tank Capacity | 16 gallons (60.6 L) atmospheric |
| Service Flow Rate | Up to 3.25 gpm (12.3 L/min) @ 50 psi |
| Water Recovery | Up to 50% (high efficiency) |
| Contaminants Reduced | Total Dissolved Solids (TDS), chlorine, sediment, hardness minerals, chlorides |
Key Features
- ā High-Efficiency RO Membrane: Recovers up to 50% of feed water, saving twice as much water compared to standard RO systems with 25% recovery rates
- ā Atmospheric Tank with Electronic Pump: Sealed 16-gallon storage tank provides compact capacity with reliable electronic pump delivery to downstream equipment
- ā Proprietary Mineral Addition (4CM): Provides optimal mineral content for proper function of conductivity sensors on steam equipment while protecting against scale and corrosion
- ā Fibredyne II Prefilter Media: Effectively inhibits bacterial growth on filter media while reducing sediment and chlorine to protect the RO membrane
- ā Space-Saving Compact Design: Wall-mountable or floor stand compatible system fits in tight spaces with built-in bypass, sample port, and flush valves for easy installation and maintenance
- ā Complete Installation Kit: Includes all necessary tubing (1/4", 3/8", 1/2"), fittings, mounting hardware, pressure gauge, and 1/2" ID high-flow hose for optimized water delivery
FAQ
Q: How far can the atmospheric tank be located from the RO processor?
A: The atmospheric tank must be located within 10 feet of the RO processor due to tubing connection lengths and the solenoid cable that connects the two components.
Q: What electrical requirements does the EZ-RO 375/16ATM system need?
A: The system requires a grounded 115 VAC, 60Hz, 2 Amp electrical outlet within five feet of the atmospheric tank. The power supply connects to the tank assembly and must be mounted in a dry location away from potential leaks or splashes.
Q: How often do the filter cartridges need to be replaced on this system?
A: The prefilter (4FC5-S) should be replaced every 6 months, the mineral addition cartridge (4CM) every 12 months, and the RO membrane (EZ-375) every 18-24 months depending on water quality and usage conditions.
What's Included
- EZ-RO Processor with plug and mounting hardware
- Pre Filter Cartridge (4FC5-S)
- CM Mineral Addition Cartridge size 4 (4CM)
- EZ-375 RO Membrane Cartridge
- 16-gallon Atmospheric Tank Assembly with buffer tank (20 psi precharge)
- 24 VDC 12.5 AMP power supply with cables
- Installation Kit with tubing (1/4", 3/8", 1/2" lengths), push-to-connect fittings, and hardware
- Pressure gauge and sample port valve
- Installation and Operation Guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
