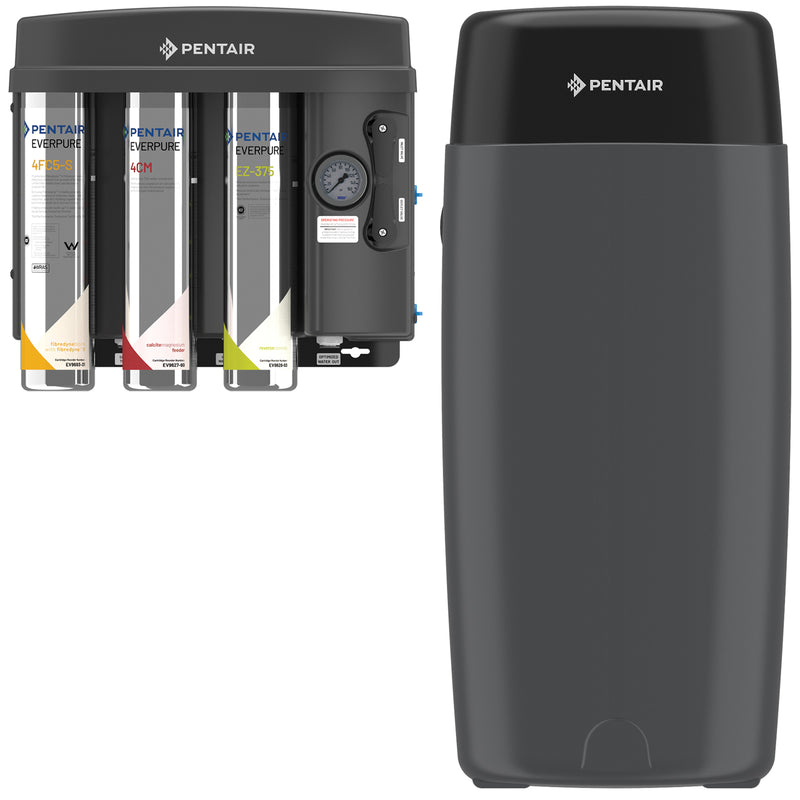

Everpure EZ-RO 375/50ATM (EV997569) Reverse Osmosis Water System with 50-Gallon Atmospheric Tank
The Everpure EZ-RO 375/50ATM is a commercial-grade reverse osmosis system designed for steam equipment applications, featuring a 50-gallon atmospheric storage tank and producing up to 375 gallons per day of optimized water while reducing total dissolved solids, chlorine, and sediment to protect combi ovens, steamers, and other foodservice equipment.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV997569 (EZ-RO 375/50ATM) |
| Daily Production Rate | Up to 375 GPD (1,419 L/day) |
| Tank Capacity | 50 gallons (189.3 L) |
| Tank Type | Atmospheric with sealed storage |
| Service Flow Rate | Up to 3.25 GPM @ 50 psi |
| Water Recovery Rate | Up to 50% (twice standard RO systems) |
| Contaminants Reduced | Total Dissolved Solids (TDS), chlorine, sediment, particulates |
Key Features
- ā High-Efficiency RO Membrane: Saves up to two times more water than standard RO systems with 50% water recovery versus typical 25% recovery rates
- ā Sealed Atmospheric Storage Tank: 50-gallon capacity with integrated buffer tank and electronic pump delivers optimized water on-demand to downstream equipment
- ā Proprietary Fibredyne II Filtration: Prefilter effectively inhibits bacterial growth on filter media while reducing sediment and chlorine to protect the RO membrane
- ā Mineral Addition Technology: 4CM cartridge provides optimal mineral content for proper function of conductivity sensors on steam equipment
- ā Complete Installation Kit: Includes all necessary tubing, fittings, mounting hardware, and built-in bypass, sample port, and flush valves for faster installation
- ā Compact & Expandable Design: Wall-mounted processor with optional floor stand, can be upgraded with larger capacity membranes without replacing the processor unit
FAQ
Q: How far can the atmospheric tank be located from the RO processor?
A: The 50-gallon atmospheric tank must be located no further than 10 feet from the EZ-RO processor due to the tubing connections and solenoid cable length requirements.
Q: What is the recommended filter cartridge replacement schedule for this system?
A: The prefilter (4FC5-S) should be replaced every 6 months, the mineral addition cartridge (4CM) every 12 months, and the RO membrane (EZ-375) every 18-24 months, or when capacity is reached or water quality becomes inadequate.
Q: Does the EZ-RO 375/50ATM system require electricity to operate?
A: Yes, the atmospheric tank assembly requires a grounded 115 VAC, 2 Amp electrical connection (120V, 60Hz) to power the electronic pump and solenoid valve system.
What's Included
- EZ-RO Processor with electrical plug
- Pre-filter cartridge (4FC5-S)
- CM Mineral Addition Cartridge size 4 or 7 (4CM)
- EZ-375 RO Membrane
- 50-gallon atmospheric tank assembly with buffer tank
- 24 VDC power supply and solenoid cable
- Installation kit with tubing (1/4", 3/8", 1/2"), push-to-connect fittings, and mounting hardware
- Installation and Operation Guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
