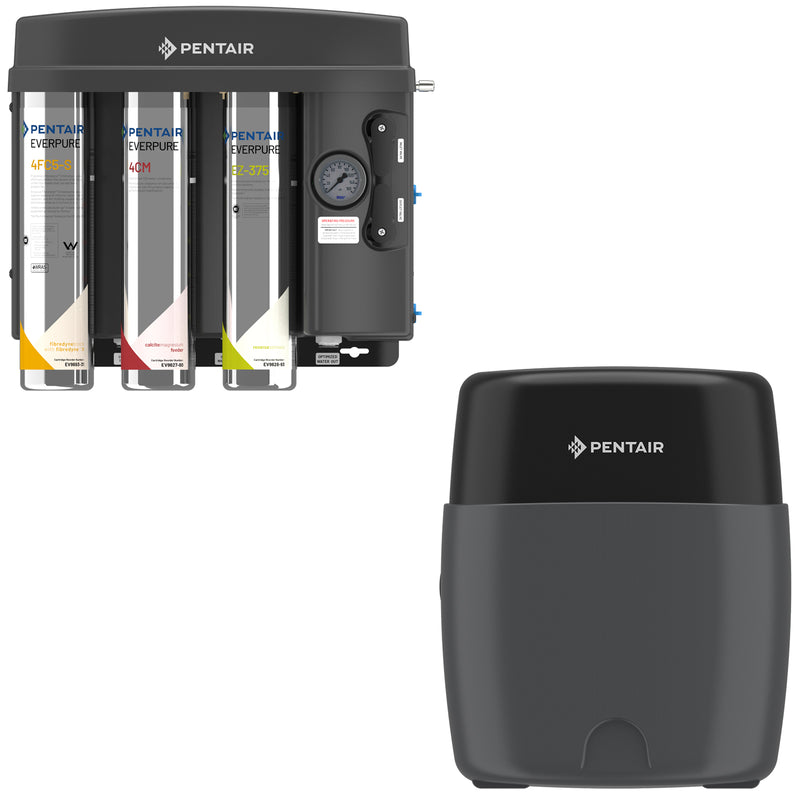

Everpure EZ-RO 375/16ATM-BL (EV997573) Blended Reverse Osmosis System
The Everpure EZ-RO 375/16ATM-BL is a commercial-grade reverse osmosis system designed specifically for espresso, coffee, and tea applications, featuring proprietary blending technology with a 16-gallon atmospheric tank that produces up to 375 gallons per day while allowing precise TDS control for optimal beverage extraction and taste consistency.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EZ-RO 375/16ATM-BL (EV997573) |
| Daily Production Rate | Up to 375 GPD (1,419 L/day) |
| Tank Capacity | 16 Gallons (60.6 L) Atmospheric |
| Service Flow Rate | Up to 3.25 GPM @ 50 PSI |
| Water Recovery | Up to 50% (High Efficiency) |
| Contaminants Reduced | Total Dissolved Solids, Sediment, Chlorine, Chlorides |
Key Features
- ā Precision Blending Technology: Stainless steel blend valve with built-in TDS meter allows customized total dissolved solids levels for optimal espresso, coffee, and tea extraction
- ā Remineralization System: 4CM cartridge adds back calcium and magnesium minerals to RO water for improved beverage extraction and taste profile
- ā High Efficiency Membrane: Saves up to two times more water than standard RO systems with up to 50% water recovery versus typical 25% recovery rates
- ā Sealed Atmospheric Tank: 16-gallon capacity with electronic pump delivers consistent optimized water to downstream equipment with space-saving compact design
- ā Fibredyne II Filtration: Proprietary prefilter media effectively inhibits bacterial growth while reducing sediment and chlorine to protect the RO membrane
- ā Complete Installation System: Includes built-in bypass, sample port, flush valves, pressure gauge, and all necessary tubing, fittings, and mounting hardware for faster setup
FAQ
Q: How far can the atmospheric tank be located from the RO processor unit?
A: The atmospheric tank must be positioned no further than 10 feet from the RO processor due to the tubing connections and the 10-foot solenoid cable that connects the tank to the processor unit.
Q: How often do the filter cartridges need to be replaced in the EZ-RO 375/16ATM-BL system?
A: The prefilter cartridge (4FC5-S) should be replaced every 6 months, the mineral addition cartridge (4CM) every 12 months, and the RO membrane (EZ-375) every 18 to 24 months, or when capacity is reached or flow becomes inadequate.
Q: What are the water quality requirements for the feed water supply?
A: Feed water must have TDS up to 1000 ppm, pH between 5-10, hardness of 12 grains per gallon or less, free chlorine less than 3 mg/L, pressure between 50-100 PSI, and temperature between 40-100Ā°F. Water outside these parameters may require pretreatment and could void the warranty.
What's Included
- EZ-RO Processor Unit with Power Supply
- 16-Gallon Atmospheric Tank Assembly with Buffer Tank and Electronic Pump
- Prefilter Cartridge (4FC5-S)
- Mineral Addition Cartridge (4CM - Size 4 or 7)
- EZ-375 RO Membrane
- Installation Kit with Tubing (1/4", 3/8", 1/2"), Fittings, and Mounting Hardware
- Built-in TDS Monitor and Blend Valve
- Pressure Gauge and Sample Port Valve
- 10-Foot Tank Solenoid Cable (M12 Connector)
- Installation and Operation Guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
