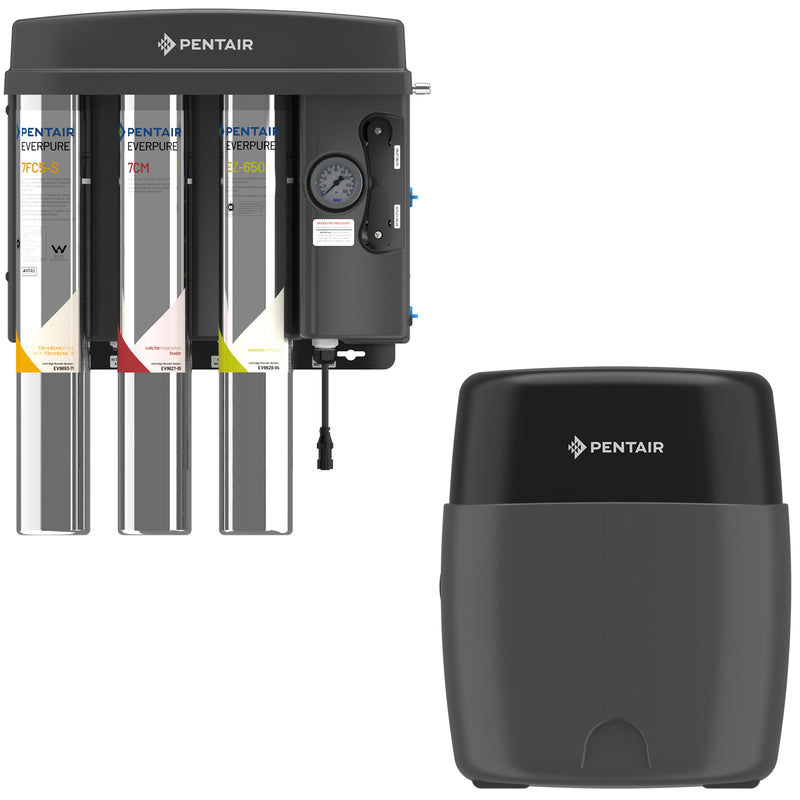

Everpure EZ-RO 650/16ATM-BL (EV997576) Blended Reverse Osmosis System
The Everpure EZ-RO 650/16ATM-BL is a commercial-grade reverse osmosis system that delivers up to 650 gallons per day with a 16-gallon atmospheric storage tank, featuring precision blending technology and remineralization for optimal coffee, espresso, and tea extraction while reducing TDS, hardness, and chlorides to protect equipment and enhance beverage quality.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EZ-RO 650/16ATM-BL |
| Daily Production Rate | Up to 650 gpd (2,460 Lpd) |
| Tank Capacity | 16 gallons (60.6 L) atmospheric |
| Service Flow Rate | Up to 3.25 gpm @ 50 psi |
| Number of Filters | 3 (Prefilter, RO Membrane, Mineral Cartridge) |
| Water Recovery | Up to 50% efficiency |
| Contaminants Reduced | TDS, chlorine, sediment, hardness minerals, chlorides |
Key Features
- ✓ Precision Blending Technology: Built-in stainless steel blend valve and TDS meter allow customized total dissolved solids levels for optimal espresso, coffee, and tea extraction
- ✓ Remineralization System: 7CM cartridge adds back calcium and magnesium for improved beverage extraction and taste profile
- ✓ High-Efficiency Membrane: Saves up to two times more water than standard RO systems with up to 50% water recovery compared to 25% standard systems
- ✓ Atmospheric Tank Design: Sealed 16-gallon storage tank with electronic pump delivers consistent optimized water to downstream equipment
- ✓ Compact All-in-One Design: Space-saving system with built-in bypass, sample port, and flush valves speeds installation and maintenance
- ✓ Fibredyne II Filtration: Proprietary media inhibits bacterial growth on filter media while reducing sediment and chlorine to protect the RO membrane
FAQ
Q: How far can the atmospheric tank be located from the RO processor?
A: The tank must be located within 10 feet of the EZ-RO processor due to tubing connections and solenoid cable length requirements.
Q: How often do the filter cartridges need to be replaced?
A: The prefilter (7FC5-S) should be replaced every 6 months, the mineral addition cartridge (7CM) every 12 months, and the RO membrane (EZ-650) every 18-24 months depending on water quality and usage.
Q: What are the feed water requirements for the EZ-RO 650/16ATM-BL system?
A: The system requires cold water (up to 80°F), 50-100 psi pressure, feed TDS up to 1000 ppm, hardness 12 grains/gal or less, free chlorine less than 3 mg/L, and pH between 5-10 for optimal performance and warranty coverage.
What's Included
- EZ-RO Processor with power plug
- 16-gallon atmospheric storage tank with buffer tank (20 psi precharge)
- 7FC5-S prefilter cartridge
- EZ-650 reverse osmosis membrane
- 7CM mineral addition cartridge
- 24 VDC 12.5 AMP power supply
- Installation kit with tubing (1/4", 3/8", 1/2"), fittings, and mounting hardware
- Solenoid cable (10 ft)
- Built-in TDS monitor and blend valve
- Pressure gauge
- Installation and operation guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
