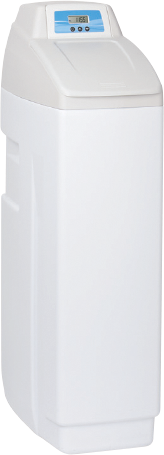

Everpure WS-30E (EV998058) Water Softener System
The Everpure WS-30E water softener delivers premium commercial-grade hardness removal with 30,000 grain capacity and advanced Fleck 5600-SXT metered control technology, ensuring consistent soft water for espresso machines, warewashing equipment, boilers, and reverse osmosis systems while minimizing salt and water consumption.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | WS-30E (120V/50-60HZ) |
| Hardness Removal Capacity | 30,000 grains @ 15 lbs salt |
| Flow Rate | 10 GPM continuous (37.8 LPM) |
| Contaminants Filtered | Calcium and Magnesium (Hardness) |
Key Features
- ā Fleck 5600-SXT Metered Control: Monitors water usage and initiates regeneration only when needed, minimizing salt and water waste
- ā High-Capacity Softening: Removes up to 30,000 grains of hardness at continuous flow rates up to 10 GPM, ideal for demanding commercial applications
- ā Fiberglass-Reinforced Resin Vessel: Features NSF-approved polyethylene liner that guards against corrosion and ensures long-lasting durability
- ā Five-Cycle Regeneration Process: Delivers controlled upflow backwash, downflow brining with slow rinse, rapid rinse, timed brine refill, and downflow service
- ā Large 225 lb Capacity Brine Tank: Maximizes time between salt replenishments for reduced maintenance and improved operational efficiency
- ā Space-Saving Single Tank Design: Compact 44.5" H x 12.75" W x 23" D footprint provides simplicity and efficiency for commercial installations
FAQ
Q: What is the difference between the various capacity ratings (30,000, 24,000, and 20,000 grains)?
A: The capacity varies based on salt dosage used during regeneration. Using 15 lbs of salt provides maximum 30,000 grain capacity, 9 lbs provides 24,000 grains, and 6 lbs provides 20,000 grains. Higher salt usage yields greater hardness removal capacity between regeneration cycles.
Q: What commercial applications is the WS-30E water softener designed for?
A: The WS-30E is ideal for cold water warewashing equipment, commercial laundry operations, boiler scale control, water heater protection, espresso machines, reverse osmosis pretreatment, and general housekeeping applications requiring soft water.
Q: Does the system require special installation considerations?
A: Yes, the system should be installed on a smooth, level surface with proper drain line air-gap over a floor drain. When connecting to water heaters, install a check valve to prevent hot water backup. Protect the control valve from excessive heat during copper pipe installation and check local codes for backflow prevention requirements.
What's Included
- WS-30E water softener system with fiberglass-reinforced resin vessel
- Fleck 5600-SXT meter-initiated control valve
- High-capacity brine tank (225 lb salt storage capacity)
- 120V 50/60Hz electrical connection with NEMA 1-15P plug
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
