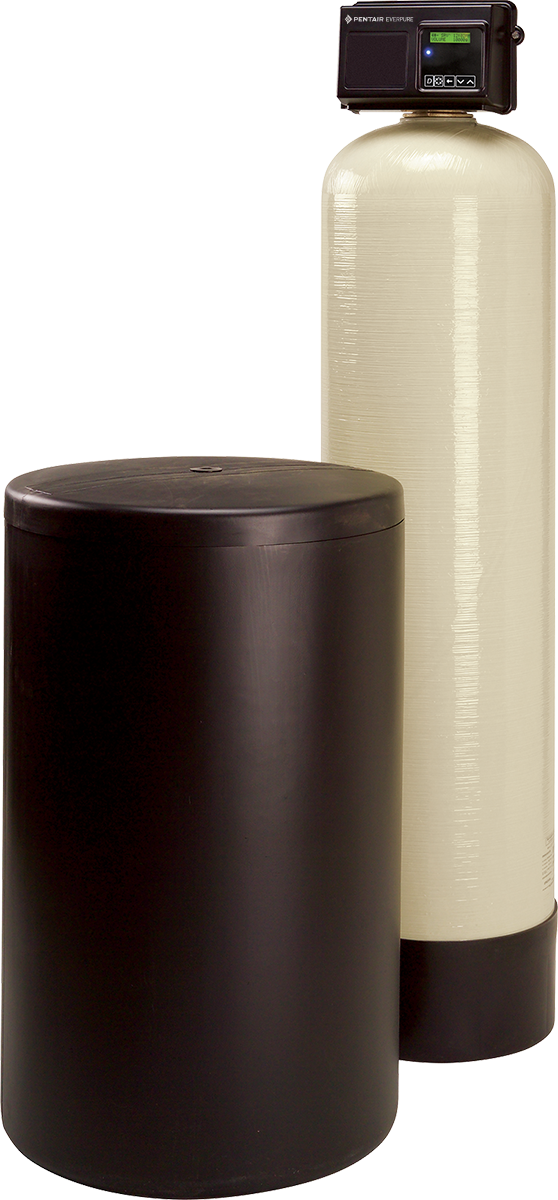

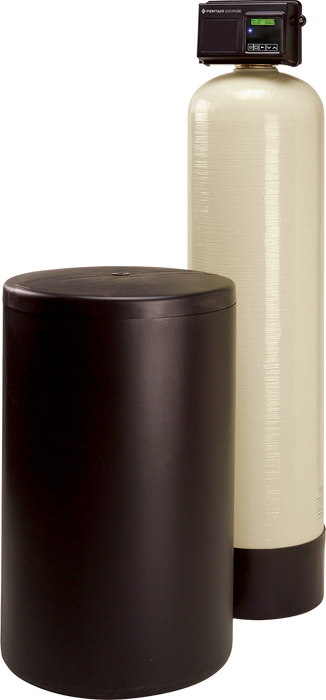

Everpure CES-2850E-60 (EV998331) Commercial Water Softener System
The Pentair Everpure CES-2850E-60 delivers premium water conditioning for commercial and light industrial foodservice applications, featuring 60,000 grains hardness removal capacity with meter-initiated regeneration that minimizes salt and water consumption while maintaining continuous flow rates up to 27 gallons per minute.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-2850E-60 |
| Hardness Removal Capacity | 60,000 grains @ 18 lbs salt |
| Continuous Flow Rate | 27 GPM @ 15 psi pressure drop |
| Intermittent Flow Rate | 35 GPM @ 25 psi pressure drop |
| Resin Volume | 2 cubic feet |
| Inlet/Outlet Connection | 1.5" FNPT |
Key Features
- ✓ Electronic Meter-Initiated Regeneration: Minimizes salt and water usage by regenerating only when needed based on actual water consumption
- ✓ High-Capacity Brine Tank: 425 lbs salt storage capacity maximizes time between refills, reducing maintenance frequency
- ✓ Fiberglass-Reinforced Resin Vessels: NSF-approved polyethylene liners guard against corrosion and optimize long-term performance
- ✓ NXT2 Programmable Controller: Easily adjustable 5-cycle control provides precise operation for various applications
- ✓ 1.5-Inch Porting: Efficient water flow for commercial foodservice operations including warewashing and boiler applications
- ✓ Wide Operating Range: Functions at 25-125 psi water pressure and 40-100°F temperature range
FAQ
Q: What applications is the CES-2850E-60 suitable for?
A: This system is ideal for cold water fed warewashing, laundry operations, boiler scale control, water heater protection, reverse osmosis pretreatment, tea brewing, and general commercial foodservice applications requiring hardness removal.
Q: How often does the system need salt refills?
A: With a 425 lbs salt storage capacity and meter-initiated regeneration using 18 lbs of salt per cycle, the frequency depends on your water usage. The large capacity brine tank is designed to maximize time between refills for reduced maintenance.
Q: What electrical and plumbing connections are required?
A: The CES-2850E-60 requires 115 VAC/60 Hz/1 Phase electrical connection and features 1.5" FNPT inlet and outlet connections. Operating water pressure must be maintained between 25-125 psi, with a pressure regulator required if daytime pressure exceeds 80 psi.
What's Included
- Control valve with NXT2 programmable controller
- Mineral tank (12" x 52") with distributor assembly
- Brine tank (18" x 40")
- Resin bags (2 bags, 15 lbs per bag)
- Gravel (2 bags)
- Installation and programming documentation
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
