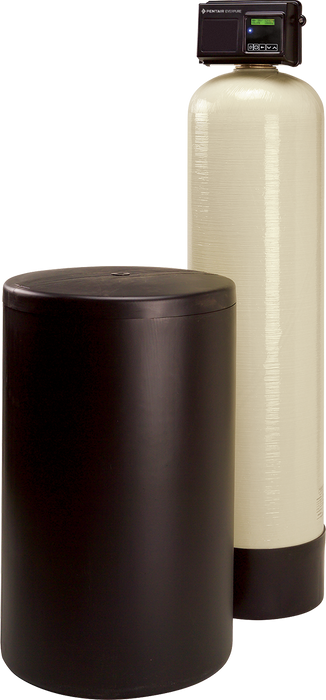

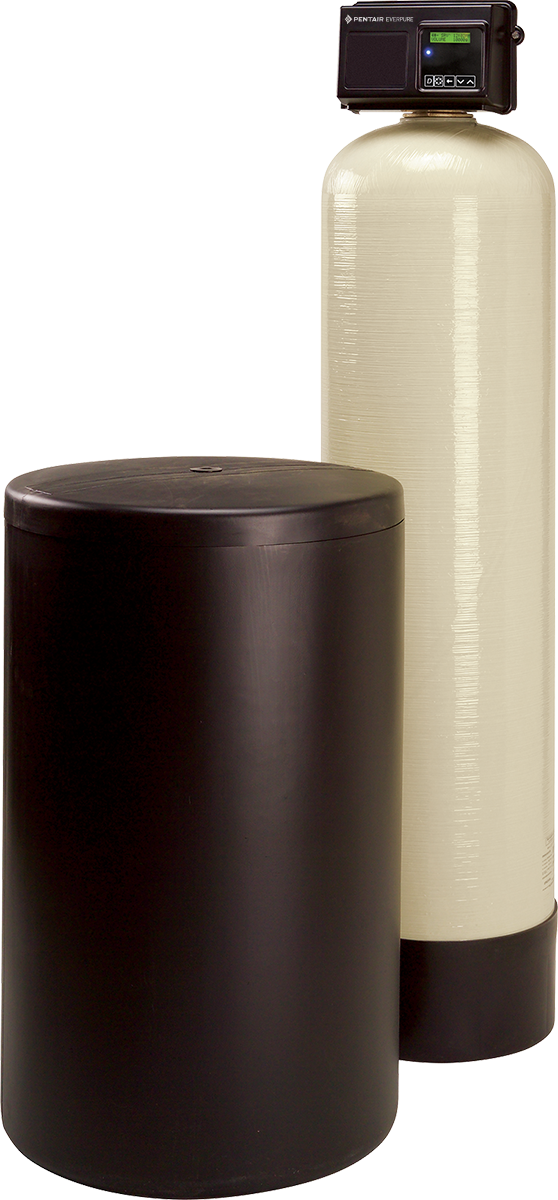

Everpure CES-2850E-90 (EV998332) Commercial Water Softener
The Pentair Everpure CES-2850E-90 delivers premium water conditioning for commercial and light industrial foodservice applications, featuring a 90,000-grain hardness removal capacity at 32 GPM continuous flow with meter-initiated regeneration that minimizes salt and water usage while maximizing operational efficiency.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-2850E-90 |
| Hardness Removal Capacity | 90,000 grains @ 27 lbs salt |
| Resin Volume | 3 cubic feet |
| Continuous Flow Rate | 32 GPM @ 25 psi ΔP |
| Intermittent Flow Rate | 42 GPM @ 25 psi ΔP |
| Inlet/Outlet Connection | 1.5" FNPT |
Key Features
- ✓ Electronic Meter-Initiated Regeneration: NXT2 programmable controller minimizes salt and water consumption while ensuring consistent water quality
- ✓ High Capacity Softening: 90,000-grain capacity removes hardness minerals efficiently with 3 cubic feet of premium resin media
- ✓ Large Brine Tank: 750-pound salt storage capacity maximizes time between refills for reduced maintenance frequency
- ✓ Fiberglass-Reinforced Construction: NSF-approved polyethylene-lined resin vessels guard against corrosion and optimize long-term performance
- ✓ 5-Cycle Adjustable Control: Easily programmable regeneration cycles adapt to varying water conditions and usage patterns
- ✓ Commercial-Grade Flow Capacity: 1.5-inch porting delivers up to 32 GPM continuous service for demanding foodservice operations
FAQ
Q: What water pressure range does the CES-2850E-90 require for proper operation?
A: The system operates optimally between 25-125 PSI. When daytime water pressure exceeds 80 PSI, a pressure regulating valve must be installed to prevent warranty voidance. If pressure falls below 25 PSI, additional equipment is needed to maintain minimum 30 PSI operating pressure.
Q: How often will the brine tank need to be refilled with salt?
A: With a 750-pound salt storage capacity and regeneration using 27 pounds of salt per cycle, refill frequency depends on your water usage and hardness levels. The meter-initiated regeneration ensures salt is used only when needed, maximizing time between refills compared to time-clock based systems.
Q: Can this system be used with a water heater to prevent scale buildup?
A: Yes, the CES-2850E-90 is ideal for water heater scale protection. When connecting to a water heater, install a check valve on the soft water piping to prevent hot water back-up. The system is designed for cold water applications (40-100°F).
What's Included
- 1 Control valve with NXT2 programmable controller and accessories
- 1 Mineral tank (14" x 65") with distributor assembly
- 1 Brine tank (24" x 40")
- 3 Resin bags (25 pounds per bag)
- 1 Gravel bag for proper media support
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
