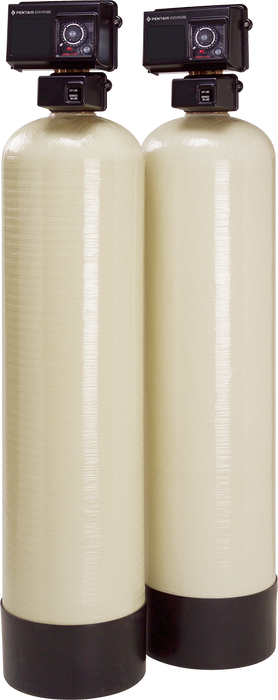

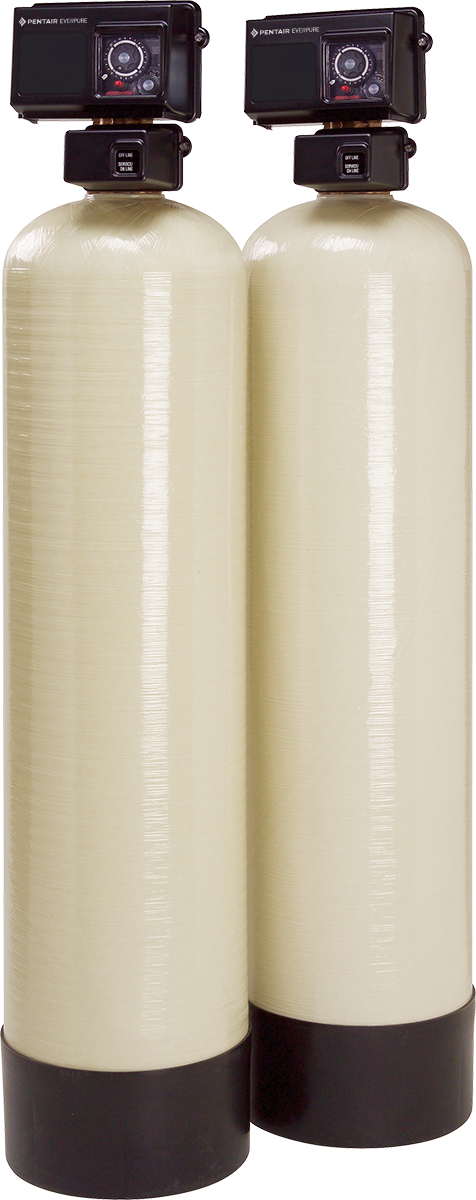

Everpure CES-2900E-150-DP (EV998443) Duplex Parallel Water Softener System
The Pentair Everpure CES-2900E-150-DP is a high-capacity duplex parallel water softening system designed for commercial and light industrial applications, featuring 2-inch porting with continuous flow rates up to 106 GPM and hardness removal capacity of 125,000 grains per tank, utilizing meter-initiated regeneration to minimize salt and water usage while ensuring uninterrupted soft water supply.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-2900E-150-DP |
| Hardness Removal Capacity | 125,000 grains @ 45 lbs salt per tank |
| Flow Rate | 106 GPM continuous @ 25 psi ΔP |
| Resin Volume | 5 cubic feet per tank |
| Inlet/Outlet Connection | 2" MNPT / 2" FNPT |
| Salt Storage Capacity | 750 lbs (340 kg) |
Key Features
- ✓ Duplex Parallel Configuration: Two-tank design ensures continuous soft water supply with no service interruption during regeneration cycles
- ✓ High-Capacity Performance: Delivers 106 GPM continuous flow with 125,000-grain hardness removal per tank for demanding commercial applications
- ✓ Advanced NXT2 Controllers: Programmable electronic meters with on-board communication via CAT 5 cable for precise, efficient regeneration
- ✓ Corrosion-Resistant Construction: Fiberglass-reinforced polyethylene pressure vessels with epoxy resin seal provide leak-free, long-lasting durability
- ✓ Efficient Salt Usage: Meter-initiated regeneration minimizes water and salt consumption, reducing operational costs
- ✓ Large Brine Tank: 750-lb salt capacity maximizes time between refills for reduced maintenance requirements
FAQ
Q: What applications is the CES-2900E-150-DP best suited for?
A: This system is ideal for commercial laundries, hospitality operations, boiler scale control, water heater protection, cooling towers, and general housekeeping applications requiring continuous soft water supply at high flow rates.
Q: How does the duplex parallel configuration work?
A: The duplex system features two independent softening tanks that operate in parallel. When one tank regenerates, the other continues providing soft water, ensuring uninterrupted service and higher flow rates for demanding commercial operations.
Q: What are the electrical and plumbing requirements for installation?
A: The CES-2900E-150-DP requires 115 VAC/60 Hz/1 Phase electrical connection, 2-inch inlet/outlet plumbing connections, water pressure between 25-125 psi, and proper drain line installation with air-gap. Professional installation is recommended to ensure compliance with local codes.
What's Included
- Two (2) control valves with NXT2 programmable controllers
- Two (2) fiberglass-reinforced mineral tanks (18" x 65")
- One (1) large capacity brine tank (24" x 40")
- Ten (10) bags of high-capacity water softening resin
- Four (4) bags of gravel media (50 lbs per tank)
- Distributor assemblies and connecting hardware
- Installation, operation, and maintenance guide
- Programming guide for NXT2 controllers
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
