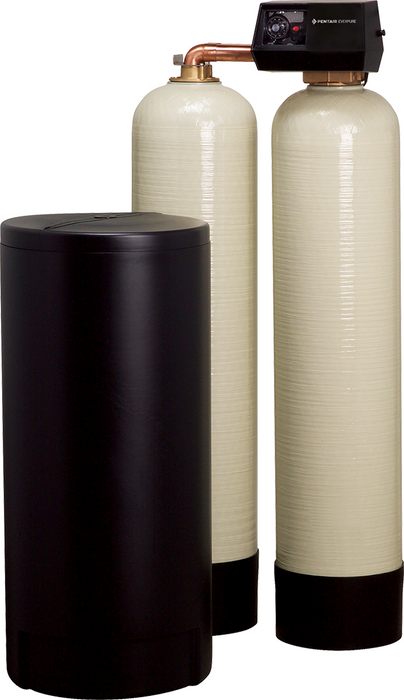

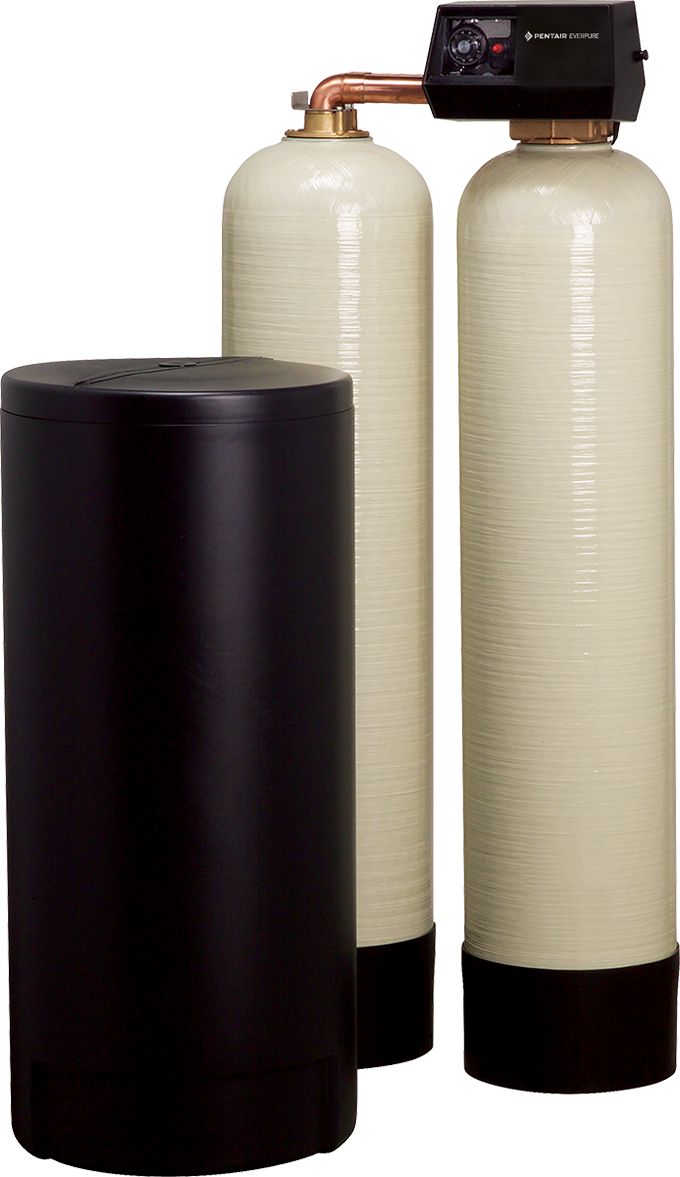

Everpure CES-9500E-60 (EV998600) Twin Tank Water Softener System
The Pentair Everpure CES-9500E Series is a dual-twin tank water softening system engineered for commercial and light industrial applications, featuring alternating twin tanks with 1.5-inch porting, electronic meter-initiated regeneration, and corrosion-resistant fiberglass-reinforced pressure vessels that deliver continuous soft water while minimizing salt and water usage.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-9500E-60 |
| Hardness Removal Capacity | 60,000 grains per tank |
| Resin Volume | 3.5 cubic feet (2 bags) |
| Flow Rate | 25 GPM continuous (32 GPM intermittent) |
| Contaminants Filtered | Hardness minerals (calcium and magnesium) |
Key Features
- ā Alternating Twin Tank Design: Ensures continuous soft water supply with no interruption during regeneration cycles
- ā Electronic Meter-Initiated Regeneration: Minimizes salt and water usage by regenerating only when necessary based on actual water consumption
- ā Corrosion-Resistant Pressure Vessels: Fiberglass-wound polyethylene construction sealed with epoxy resin prevents leaks and ensures long-lasting durability
- ā Large Capacity Brine Tank: 425-pound salt storage capacity maximizes time between refills for reduced maintenance
- ā 5-Cycle Downflow Brining Control: Easily adjustable control system optimizes regeneration efficiency and performance
- ā Commercial-Grade Construction: NSF-listed components with 1.5-inch FNPT inlet/outlet connections for easy installation in high-demand applications
FAQ
Q: What operating pressure range is required for the CES-9500E-60 system?
A: The system operates between 25 and 125 PSI (1.7 - 8.6 bar). If daytime water pressure exceeds 80 PSI, a pressure regulator must be installed to prevent exceeding the maximum rating and voiding the warranty. If pressure is below 25 PSI, additional equipment is needed to maintain minimum 30 PSI operating pressure.
Q: How does the alternating twin tank design benefit commercial operations?
A: The alternating twin tank configuration ensures one tank is always in service while the other regenerates, providing an uninterrupted supply of soft water 24/7. This design also reduces salt usage compared to traditional systems since regeneration only occurs when one tank is exhausted rather than both simultaneously.
Q: What maintenance is required for the CES-9500E system?
A: Primary maintenance involves regularly refilling the brine tank with salt and ensuring proper system operation through periodic checks. The electronic meter-initiated regeneration system automatically manages regeneration cycles based on water usage, minimizing manual intervention and optimizing salt efficiency.
What's Included
- Two (2) fiberglass-reinforced mineral tanks with distributor assemblies
- Two (2) control valves with electronic meter-initiated regeneration
- One (1) polyethylene brine tank with 425 lb salt storage capacity
- Four (4) bags of premium ion exchange resin (2 bags per tank)
- Four (4) bags of support gravel (15 lbs per tank)
- Control valve accessories and meter cables
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
