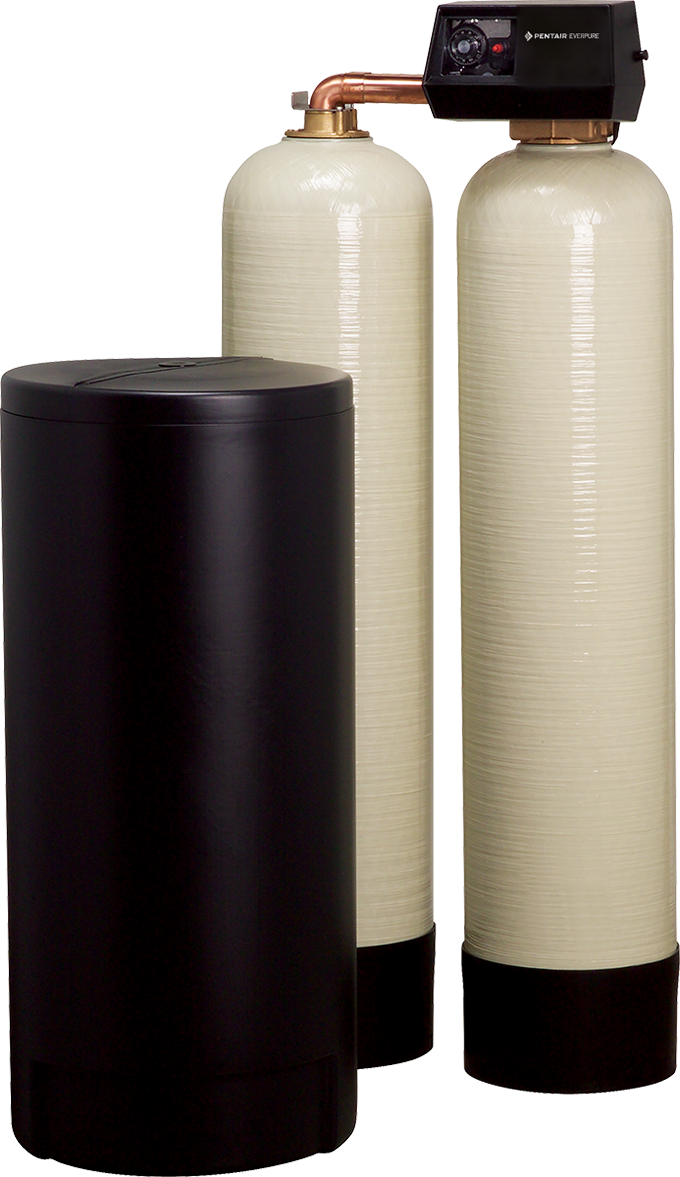

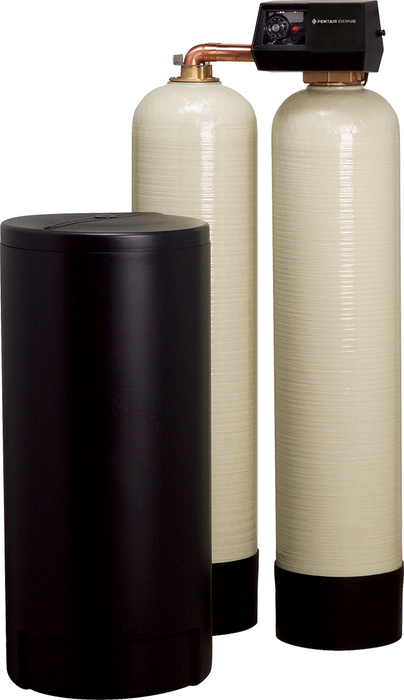

Everpure CES-9500E-120 (EV998602) Twin Tank Water Softener System
The Pentair Everpure CES-9500E-120 is a commercial-grade dual-twin tank water softening system engineered to deliver continuous soft water for commercial and light industrial applications, featuring alternating twin tank technology with 120,000 grains capacity per tank and flow rates up to 30 GPM for uninterrupted scale protection.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-9500E-120 |
| Softening Capacity | 120,000 grains @ 36 lbs salt per tank |
| Resin Volume | 4 cubic feet per tank (8 total) |
| Flow Rate | 30 GPM continuous @ 15 psi / 39 GPM @ 25 psi |
| Contaminants Filtered | Hardness minerals (calcium and magnesium) |
Key Features
- ✓ Alternating Twin Tank Design: Ensures continuous soft water supply with zero downtime during regeneration cycles while reducing salt consumption
- ✓ Electronic Meter-Initiated Regeneration: Minimizes salt and water usage by regenerating only when necessary based on actual water consumption
- ✓ Fiberglass-Reinforced Pressure Vessels: Corrosion-resistant polyethylene shell wound with fiberglass and sealed with epoxy resin for leak-free, long-lasting operation
- ✓ Large Capacity Brine Tank: 750 lbs salt storage capacity maximizes time between refills for reduced maintenance requirements
- ✓ Commercial-Grade Flow Capacity: Delivers 30 GPM continuous service flow with 1.5-inch FNPT inlet/outlet connections for demanding applications
- ✓ Five-Cycle Downflow Brining Control: Easily adjustable control system optimizes regeneration efficiency and water softening performance
FAQ
Q: What applications is the CES-9500E-120 best suited for?
A: This system is ideal for commercial warewashing operations, laundry facilities, boiler scale control, water heater protection, reverse osmosis pretreatment, and general commercial/light industrial applications requiring continuous soft water delivery.
Q: How does the twin tank system ensure continuous soft water supply?
A: The alternating twin tank design allows one tank to remain in service providing soft water while the other regenerates, eliminating any interruption in soft water availability during the regeneration process.
Q: What are the operating pressure and temperature requirements?
A: The CES-9500E-120 operates within 25-125 PSI (1.7-8.6 bar) water pressure and 40-100°F (4.4-37.8°C) temperature range. A pressure regulator must be installed if daytime pressure exceeds 80 PSI to maintain warranty coverage.
What's Included
- Two (2) fiberglass-reinforced mineral tanks (16" x 65")
- Two (2) electronic control valves with meter bodies
- One (1) polyethylene brine tank (24" x 40")
- Eight (8) bags of premium cation exchange resin (35 lbs per tank)
- Four (4) bags of support gravel
- Distributor assemblies and control accessories
- Installation, operation and maintenance guide
- Programming guide for electronic control system
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
