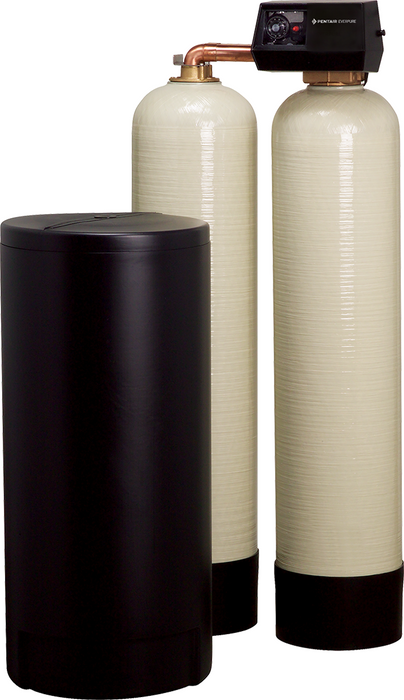

Everpure CES-9500E-150 (EV998603) Twin Tank Water Softener System
The Pentair Everpure CES-9500E-150 is a dual-twin tank commercial water softening system engineered to deliver premium softened water for commercial and light industrial applications, featuring alternating twin tanks with 150,000 grain capacity, continuous 31 GPM flow rate, and corrosion-resistant fiberglass-reinforced pressure vessels that effectively reduce scale buildup while ensuring uninterrupted soft water delivery.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-9500E-150 (EV998603) |
| Softening Capacity | 150,000 grains @ 45 lbs salt per tank |
| Resin Volume | 5 cubic feet per tank |
| Flow Rate | 31 GPM continuous at 15 PSI, 40 GPM at 25 PSI |
| Contaminants Filtered | Calcium and magnesium hardness minerals |
Key Features
- ✓ Alternating Twin Tank Design: Ensures continuous soft water supply during regeneration cycles while reducing salt consumption and maximizing uptime
- ✓ High-Capacity Brine Tank: 750-pound salt storage capacity maximizes time between refills for low-maintenance operation
- ✓ Electronic Meter-Initiated Regeneration: Minimizes salt and water usage by regenerating only when needed based on actual water consumption
- ✓ Corrosion-Resistant Construction: Fiberglass-wound pressure vessels with epoxy resin seal and NSF-listed polyethylene liners ensure leak-free, long-lasting performance
- ✓ 1.5-Inch Porting: Large FNPT inlet/outlet connections accommodate high flow rates for commercial applications
- ✓ 5-Cycle Downflow Brining Control: Easily adjustable control system optimizes regeneration efficiency and water quality
FAQ
Q: What operating pressure range is required for the CES-9500E-150 system?
A: The system requires water pressure between 25 and 125 PSI (1.7 - 8.6 bar) for optimal operation. If daytime water pressure exceeds 80 PSI, a pressure regulator must be installed to prevent exceeding the maximum 125 PSI rating and to maintain warranty coverage.
Q: How often will the brine tank need to be refilled with salt?
A: With a 750-pound salt storage capacity and consumption of 45 pounds per regeneration cycle, refill frequency depends on water usage and hardness levels. The electronic meter-initiated regeneration ensures the system only regenerates when needed, maximizing time between refills compared to time-clock systems.
Q: Can this system provide continuous soft water without interruption?
A: Yes, the alternating twin tank design ensures one tank is always in service while the other regenerates, providing uninterrupted soft water supply at flow rates up to 31 GPM continuous service for commercial and light industrial applications.
What's Included
- Two fiberglass-reinforced pressure vessels (18" x 65" each)
- Two electronic control valves with meter bodies and cables
- One polyethylene brine tank (24" x 40")
- Ten resin bags (250 lbs total - 50 lbs per bag)
- Four gravel bags
- Distributor assemblies with tubes and collectors
- Installation and operation manual
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
