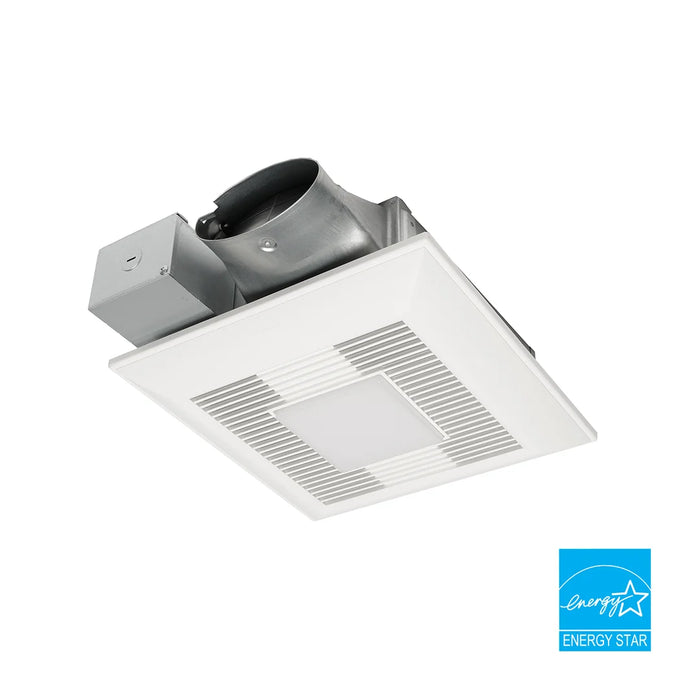

FV-0510VSL1 | WhisperValue® DC Fan and Light with Pick-A-Flow®, 50-80-100 CFM

FV-0510VSL1 | WhisperValue® DC Fan and Light with Pick-A-Flow®, 50-80-100 CFM

by Panasonic
$165.99 - $165.99
$165.99
$165.99 - $165.99
$165.99

Panasonic (FV‑0510VSL1) WhisperValue® DC fan with LED light and Pick‑A‑Flow® airflow (50/80/100 CFM). ENERGY STAR®, ultra‑quiet, ultra‑slim for tight ceiling or wall installs.
Buy Now

FV-0510VSL1 Key Features:

  • Customizable Airflow with Pick-A-Flow® Selector: Select the CFM that suits your space—50, 80, or 100 CFM—for precision airflow and optimal performance
  • SmartFlow™ Technology: Automatically adjusts the fan’s speed to maintain peak performance, saving energy and ensuring the best CFM output
  • Lowest Profile Design: With a housing depth of just 3-3/8", this is the slimmest ENERGY STAR®-certified fan available, making it perfect for tight spaces and easy installation, even in 2" x 4" stud walls
  • Integrated 10W dimmable LED chip panel with less than1W LED nightlight for warm, energy-efficient illumination (nightlight must be wired separately)
  • Warranty: 6 years ECM Motor, 5 years LED, 3 years all other parts

Featured Specs:

Model

FV-0510VSL1

Air Volume Exhaust (CFM)

50 @ 0.1" SP, 52 @
0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 101
@ 0.25" SP

Master Carton Dimensions (HxWxD)

9.06 x 14.17 x 16.93

CFM

50-70. 80-110

Other Approved Codes and Standards

ASHRAE 62.2, LEED, California Title 24, Washington VIAQ

Color Rendering Index

90

Color Temperature (Kelvin)

3,000

Construction Type

Single-Family/Manufactured
Housing. Multi-Family. Hospitality/Assisted Living/Student Housing.
Renovation/Remodeling

Current (Amps)

50 CFM= .08A, 80 CFM= .13A, 100 CFM=.18A

Ventilation Design Approach

Continuous Ventilation.
Spot Ventilation

Duct Diameter

4" Oval

Energy Efficiency (CFM/Watt)

50 CFM= 12.1 CFM/W, 80
CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W

ENERGY STAR® Certified

Yes

Fan Type

Fan Only

Grille Size (in sq.)

13"

Industry

Residential. Light
Commercial

Installation

Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)

Lamp Watts

10

Lumens (lm)

700

Lumens Per Watt (LPW)

70

Motor Type (AC/DC)

ECM

Mounting Opening (in sq.)

10-1/2"

Mounting Options

Ceiling Mount. Wall Mount (UL). Tub/Shower (UL)

Night Light

0.2

Noise (Sones)

50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 80
@ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101
@ 0.25" SP = 1.3

Power Consumption (Watts)

50 CFM= 4.5W, 80 CFM= 8.5W,
100 CFM=12.4W

Power Rating (V/Hz)

120/60

Product Family Name

WhisperValue DC

Radiation Damper Available

Yes

Rated Life (hours)

50,000

Type of Lamp Socket

LED chip

UL Listed for Tub/Shower Enclosure when GFCI Protected

Yes

Warranty

6 year DC Motor, 3 Year Parts

Master Carton Gross Weight (lbs.)

9.92

Installation:

A licensed electrician is recommended. Shut off power at the breaker. Use the included L‑shaped mounting bracket to position the ultra‑low‑profile housing securely between ceiling or wall studs. Connect to 4″ oval ducting (adapter may be required) and wire per local code. Attach the 13″ grille, restore power, and verify fan and lighting operation.

Maintenance:

Clean the grille every six months. Ensure LED lighting and night‑light wiring works as expected. Monitor for signs of reduced airflow or increased noise—check duct routing for restrictions if performance drops.

Sell Sheets

Submittal Sheets

Architectural Specs

Service Manuals

BIM Model Files

Installation Manuals
