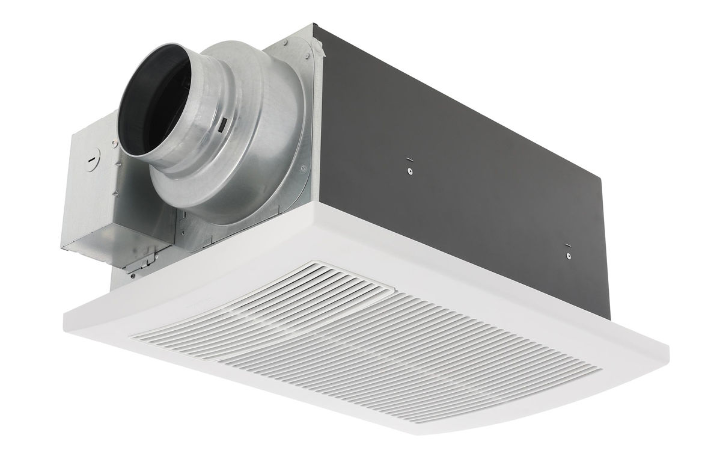

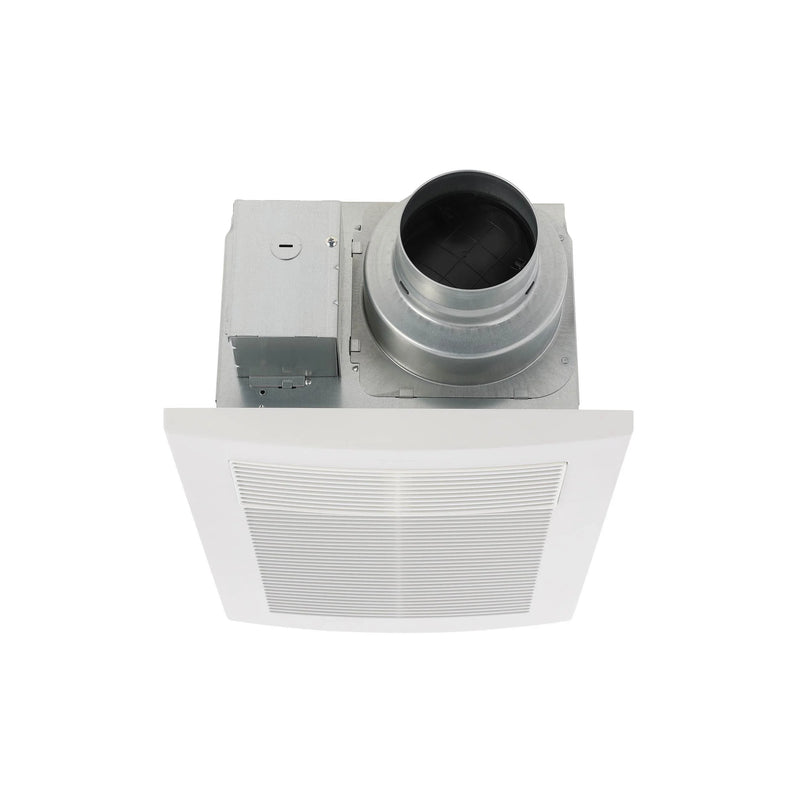

FV-0511VH1 | WhisperWarm® DC Fan with Heater, 50-80-110 CFM
FV-0511VH1 | WhisperWarm® DC Fan with Heater, 50-80-110 CFM
FV-0511VH1 | WhisperWarm® DC Fan with Heater, 50-80-110 CFM
FV-0511VH1 | WhisperWarm® DC Fan with Heater, 50-80-110 CFM
FV-0511VH1 | WhisperWarm® DC Fan with Heater, 50-80-110 CFM

FV-0511VH1 | WhisperWarm® DC Fan with Heater, 50-80-110 CFM

by Panasonic
$301.99 - $301.99
$301.99
$301.99 - $301.99
$301.99

WhisperWarm® DC ceiling mount fan with heater provides easy code compliance for the professional, while the homeowner/occupant enjoys a warmer, more comfortable and HEALTHIER environment, with enhanced heating technology that quickly heats up any bathroom.  Indoor comfortability is becoming more important in today’s environment and the WhisperWarm DC fan is the solution!
Buy Now

Key Features:

  • Precision spot ventilation fan/heater incorporates a powerful ECM motor with Smartflow™ Technology for optimum CFM output
  • Built-in 1600W Positive Temperature Coefficient (PTC) heater provides instant warm up for safe and reliable operation. Combined with a unique circulation grille with built-in diffuser, it provides even more advanced heating performance
  • Pick-A-Flow® (50-80-110 CFM) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
  • Flex-Z Fast® bracket provides flexible, fast and easy installation, even from below the ceiling

Featured Specs:

Model

FV-0511VH1

Model

FV-0511VH1

Fan Type

Fan/Heater

Advanced Features

Pick-A-Flow™ Airflow
Selector, ECM motor with SmartFlow technology

Air Volume Supply (CFM)

@0.1= 110, 80, 50 @0.25= 112, 82, 51 @0.375= 110, 82, 53

Noise (Sones)

@0.1"SP (50,80,110
CFM) = 0.7, <0.3, <0.3 @0.25"SP(50,80,110 CFM) = 1.5, 1.0, 08

Power Consumption (Watts)

@ 0.1"SP (50,80,110 CFM) = 12, 7.7, 4.7 @ 0.25"SP
= 19, 13.3, 8.6 @0.375"SP 26.0, 18.2, 12.3

Energy Efficiency (CFM/Watt)

@ 0.1"SP (50,80,110
CFM) = 9.2, 10.4, 10.6 @ 0.25"SP = 5.9, 6.2, 5.9 @0.375"SP 4, 4.5,
4.3

Speed (RPM) 1342 1480

@ 0.1"SP (50,80,110 CFM) = 861, 736, 638 @
0.25"SP = 1090, 1008, 930 @0.375"SP 1249, 1173, 1112

Current (Amps)

@ 0.1"SP (50,80,110
CFM) = 0.24, 0.16, 0.10 @ 0.25"SP = 0.37, 0.26, 0.18 @0.375"SP
0.49, 0.35, 0.25

MAX. Current (Amps)

120/60

Motor Type (AC/DC)

ECM (DC

Type of Motor Bearing

Ball

Thermal Fuse Protector

Yes

Blower Wheel Type

Sirocco

ENERGY STAR® Certified

No

Duct Diameter

4" or 6" (inches)

Mounting Opening (in sq.)

10-1/4" x 16"

Grille Size (in sq.)

13-1/4" x 18-1/4"

Gross Weight (lbs)

16.3

UL tub/Shower Enclosure

No

Wall Installation

No

California Title 24 Complaint (LED)

Yes

Mfg in ISO 9001 Certified Facility

Yes

Installation Manuals

Sell Sheets

Submittal Sheets

Service Manuals

BIM Model Files
