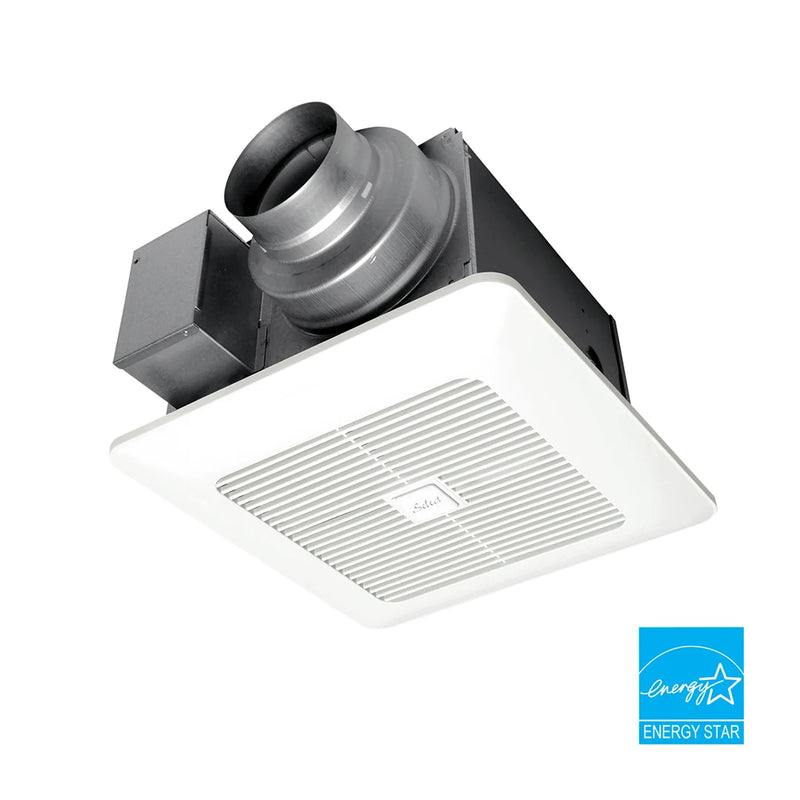

FV-0511VK2 | WhisperGreen® Select Fan, 50-80-110 CFM

Original price $192.99 - Original price $192.99
Original price
$192.99
$192.99 - $192.99
Current price $192.99

Reintroducing WhisperGreen® Select brand of fans, our wholehouse IAQ solution with enhancements.improved, single-hinged, Flex-Z Fast® bracket for more flexible and easy installation. Other enhancements include an environmentally-friendly, 26-gauge, Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.

Buy Now

Key Features

  • Pick-A-Flow® Airflow Selector: Choose between 50, 80, or 110 CFM to match room size and ventilation needs.

  • SmartFlow™ Technology: Automatically adjusts fan speed to maintain optimal airflow, ensuring compliance with building codes and reducing callbacks.

  • ECM Motor: Energy-efficient motor that provides consistent performance while consuming less power.

  • Quiet Operation: Operates at less than 0.8 sones, providing a quiet environment.

  • Energy Star® Certified: Meets stringent energy efficiency standards, including ASHRAE 62.2, LEED, and California Title 24.

  • Environmentally Friendly Housing: Constructed with 26-gauge Zinc-Aluminum-Magnesium (ZAM) material for durability and reduced environmental impact.

  • Flex-Z Fast® Bracket: Improved single-hinge bracket for fast and flexible installation.

  • Elegant Grille Design: Complements the aesthetics of any room.

Product Specifications:

Model

FV-0511VK2

Model number

FV-0511VK2

Fan Type

Fan only

Advanced Features

Pick-A-Flow™ Airflow
Selector, ECM motor with SmartFlow technology

Air Volume Supply (CFM)

@0.1= 50, 80, 110 @0.25= 51, 80, 110 @0.375= 51, 79, 108

Noise (Sones)

@0.1"SP (50,80,110
CFM) = <0.3 @0.25"SP(51,80,110 CFM) = 0.4, 0.5, 0.8

Power Consumption (Watts)

50 CFM=3.1, 80=5.1, 110=9.9

Energy Efficiency (CFM/Watt)

50 CFM=16.2, 80=15.7,
110=11.1

Current (Amps)

50 CFM=0.04, 80=0.06, 110=0.10

Power Rating (V/Hz)

120/60

Motor Type (AC/DC)

DC (ECM)

ENERGY STAR® Certified

Yes

Other Approved Codes and Standards

ASHRAE 62.2, LEED, CA T-24, CALGreen

Duct Diameter

4 inch

Mounting Options

Horizontal

Ventilation Design Approach

Bathroom Exhaust Fan

Warranty

6 years ECM Motor, 3 years all other parts

Industry

Residential, Light
Commercial

Radiation Damper Available

Yes, PC-RD05C5

UL Listed for Tub/Shower Enclosure when GFCI Protected

Yes

Master Carton Gross Weight (lbs.)

11.80 (1 unit)

Master Carton Dimensions (HxWxD)

11.85 x 14.17 x 16.73

Basic Installation & Maintenance

Installation Steps:

  1. Ensure the electrical circuit is turned off before installation.
  2. Use the Flex-Z Fast® bracket to secure the fan housing between ceiling joists.
  3. Attach the duct to the fan's duct collar, ensuring a secure fit.
  4. Connect the fan's wiring to the home's electrical system, following local codes.
  5. Snap the grille into place, ensuring it's securely attached.
  6. Turn the electrical circuit back on and test the fan's operation.
