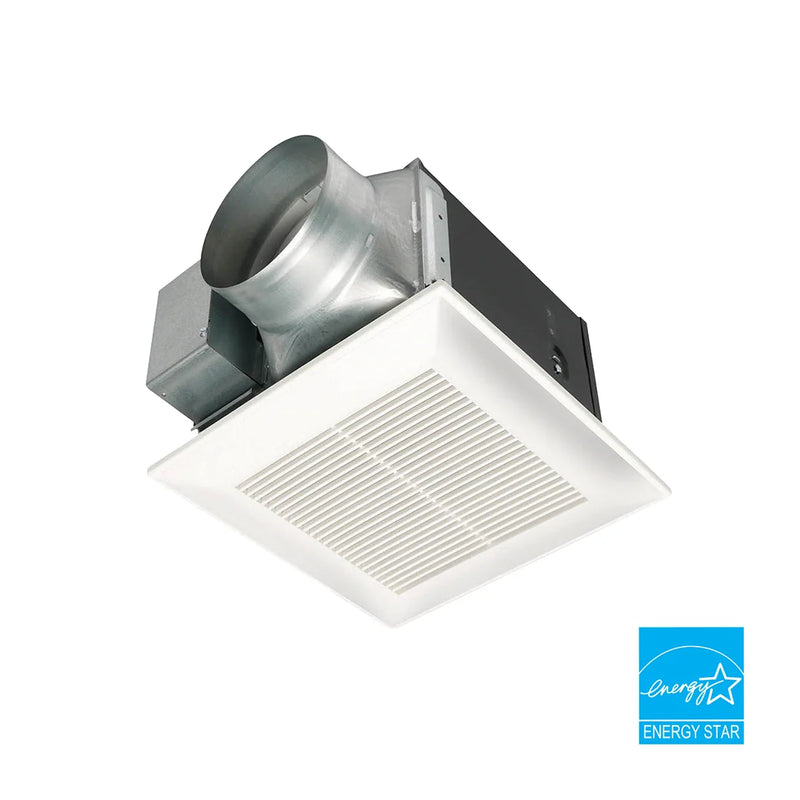

FV-0511VQ1 | WhisperCeiling® DC Fan with SmartFlow™, 50-80-110 CFM

Featured Specs:

Model

FV-0511VQ1

Advanced Features

Single Speed

Air Volume (CFM)

110, 111, 80, 83, 50, 53

Blower Wheel Type

Sirocco

California Title 24 Compliant

Yes

Current (Amps)

0.18, 0.26, 0.11, 0.18,
0.07, 0.13

Duct Diameter

4" or 6"

Energy Efficiency (CFM/Watt)

10.6, 6.9, 13.6, 7.7, 12.5,
7.4

ENERGY STAR® Certified

Yes

Grille Size (in sq.)

13"

Gross Weight (lbs)

11.0

MAX. Current (Amps)

0.27

Mfg in ISO 9001 Certified Facility

Yes

Motor Type (AC/DC)

DC

Mounting Opening (in sq.)

10-1/2"

Noise (Sones)

<0.3, 0.9, <0.3, 0.6,
<0.3, 0.4

Power Consumption (Watts)

10.6, 16.4, 5.9, 10.8, 4.0, 7.2

Power Rating (V/Hz)

120/60

Product Family Name

WhisperCeiling DC

Speed (RPM) 1342 1480

1016, 1268, 867, 1185, 768,
1097

Static Pressure in inches w.g.

0.1, 0.25, 0.1, 0.25, 0.1, 0.25

Thermal Fuse Protection

Yes

Type of Motor Bearing

Ball

UL Listed for Tub/Shower Enclosure when GFCI Protected

Yes

UL tub/Shower Enclosure

Yes

Washington VIAQ Code

Yes

Installation Manuals

• FV-0511VQ1 Installation Manual (English) (PDF)
• FV-1115VQ1 Installation Manual (English) (PDF)

Sell Sheets

• FV-1115VQ1 Sell Sheet (PDF)

Submittal Sheets

• FV-0511VQ1 Submittal Sheet (PDF)

Architectural Specs

• FV-0511VQ1 Architectural Specifications (PDF)

Service Manuals

• FV-0511VQ1 Service Manual (PDF)
