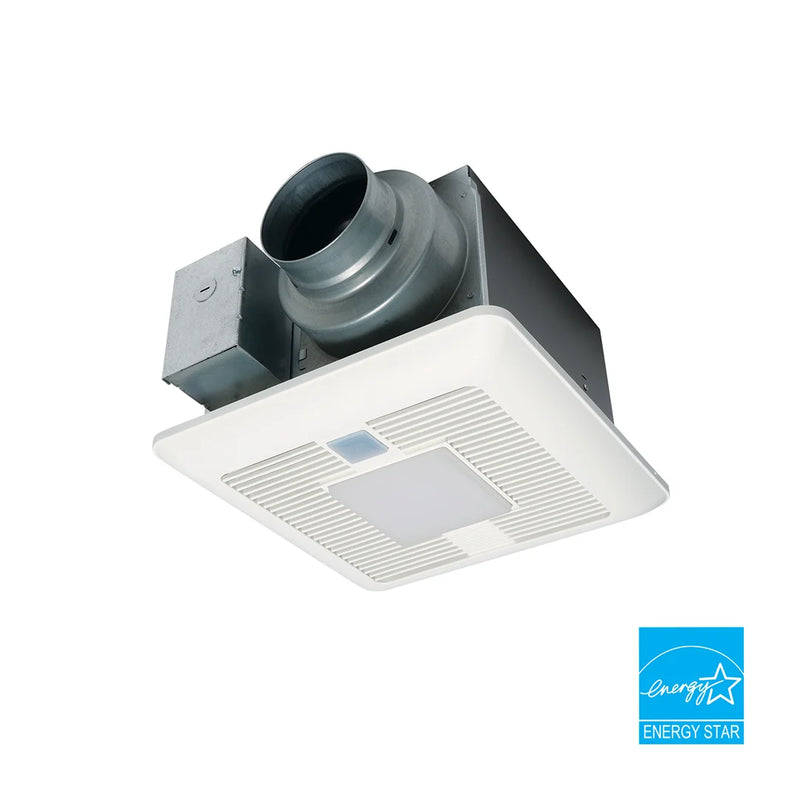

FV-0511VQCL1 | WhisperSense® DC Fan with Light, 50-80-110 CFM

FV-0511VQCL1 | WhisperSense® DC Fan with Light, 50-80-110 CFM

Name: FV-0511VQCL1 | WhisperSense® DC Fan with Light, 50-80-110 CFM
Brand: Panasonic
SKU: FV-0511VQCL1
Price: 310.99 USD
Availability: InStock

by Panasonic

$310.99 - $310.99

$310.99

$310.99 - $310.99

$310.99

A precision spot ventilation fan with integrated LED lighting, featuring dual sensors for automatic moisture and odor control, and a Pick-A-Flow® speed selector for customizable airflow.

Buy Now

Description

Key Features:

Precision spot ventilation fans ideal for use in the bathroom, laundry room, mud room, basement or garage
Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
Pick-A-Flow® Speed Selector (50-80-110 CFM) combined with SmartFlow™ Technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
Dual Sensor Technology (Motion & Moisture) provides built-in redundancy for the ultimate in automatic moisture and odor control
Flex-Z Fast® bracket provides flexible, fast & trouble-free installation, even from below the ceiling

Specifications

Featured Specs:

Download the Full Spec Sheet

Model

FV-0511VQCL1

Static Pressure in inches w.g.

0.1|0.25|0.1|0.25|0.1|0.25

Air Volume (CFM)

110|110|80|83|50|50

Noise (Sones)

0.4|0.9|<0.3|0.6|<0.3|0.4

Power Consumption (Watts)

10.9|16.1|6.0|11.0|3.9|7.1

Energy Efficiency (CFM/Watt)

10.3|7.0|13.7|7.7|14.1|7.8

Speed (RPM) 1342 1480

1016|1268|867|1185|768|1097

Current (Amps)

0.18|0.26|0.11|0.19|0.07|0.12

Power Rating (V/Hz)

120/60

Motor Type (AC/DC)

Duct Diameter

4" or 6"

Mounting Opening (in sq.)

10-1/2"

Grille Size (in sq.)

13"

MAX. Current (Amps)

0.30

Type of Motor Bearing

Ball

Thermal Fuse Protection

Yes

Blower Wheel Type

Sirocco

Lamp Watts

10.0

Lumens (lm)

700

Night Light

0.2

Lumens Per Watt (LPW)

Color Temperature (Kelvin)

3,000

Color Rendering Index

Rated Life (hours)

50,000

Type of Lamp Socket

LED Chip

UL tub/Shower Enclosure

Yes

Washington VIAQ Code

Yes

California Title 24 Compliant

Yes

Mfg in ISO 9001 Certified Facility

Yes

Gross Weight (lbs)

11.9

ENERGY STAR Qualified

Yes

Owner's Guide

Installation:

A licensed electrician is recommended. Before installation, shut off power at the breaker. Use the Flex-Z Fast® bracket to mount the housing securely between ceiling joists. Connect ductwork using the integrated 4″/6″ adapter. Wire the fan and LED per local codes. Attach the grille and LED lamp, restore power, and test operation.

Maintenance:

Clean the grille gently every six months. Periodically dust the LED lamp and inspect the integrated damper. Replace the GU24 LED lamp as needed (rated for ~25,000 hours). Keep ducts connected and clear to maintain quiet, efficient operation.
