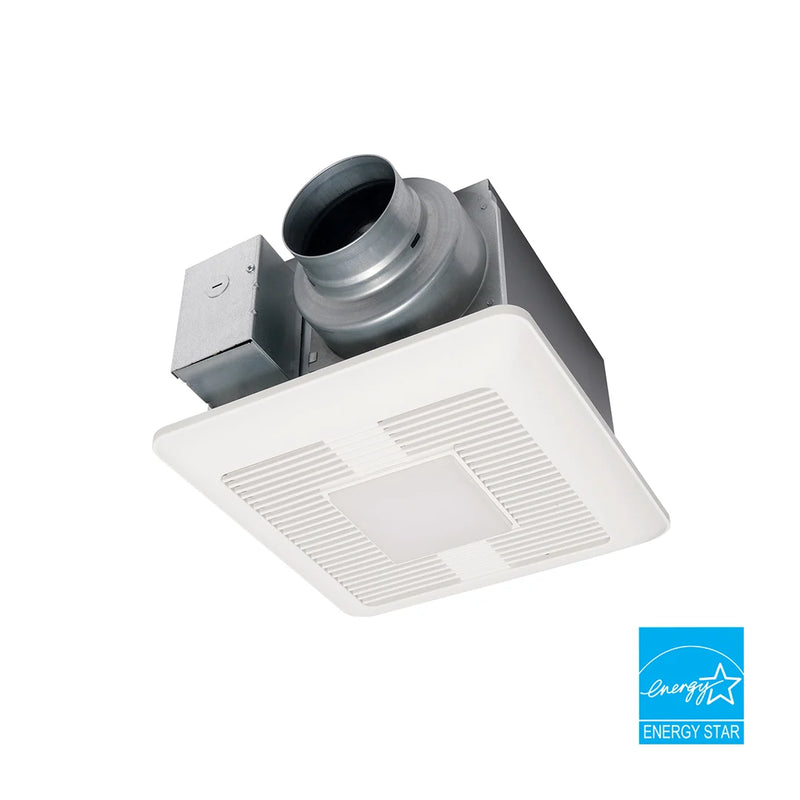

FV-1115VQL1 | WhisperCeiling® DC Fan with Light, Smartflow™ 110-130-150 CFM

FV-1115VQL1 | WhisperCeiling® DC Fan with Light, Smartflow™ 110-130-150 CFM

Name: FV-1115VQL1 | WhisperCeiling® DC Fan with Light, Smartflow™ 110-130-150 CFM
Brand: Panasonic
Price: 288.99 USD
Availability: InStock

by Panasonic

$288.99 - $288.99

$288.99

$288.99 - $288.99

$288.99

WhisperCeiling® DC Precision Spot Ventilation Fan/ Light with built-in Pick-A-Flow® speed selector switch allows you to select your required airflow (50-80-110 CFM). The fan features an ECM Motor withSmartFlow™ technology and a Flex-Z Fast® installation bracket. This fan is ideal for bathroom ventilation. It can be used to comply with the latest codes and standards

Buy Now

Description

Key Features:

Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
Pick-A-Flow® Speed Selector – one fan, you choose the CFM (50, 80, 110)
• Flex-Z Fast® bracket provides flexible, fast & trouble-free installation, even from below the ceiling
Lighted models incorporate one long-life, 10W dimmable LED chip panel with less than 1W LED night light for warm, energy efficient illumination
Elegant grille design compliments the aesthetics of any bathroom

Specifications

Featured Specs:

Model

FV-1115VQL1

Advanced Features

Single Speed

Air Volume (CFM)

150, 144, 130, 131, 110, 110

Blower Wheel Type

Sirocco

California Title 24 Compliant

Yes

Color Rendering Index

Color Temperature (Kelvin)

3,000

Current (Amps)

0.21, 0.30, 0.17, 0.27,
0.13, 0.22

Duct Diameter

Energy Efficiency (CFM/Watt)

11.7, 7.5, 12.8, 7.8, 14.5,
8.7

Grille Size (in sq.)

13"

Gross Weight (lbs)

11.9

Lamp Watts

10.0

Lumens (lm)

700

Lumens Per Watt (LPW)

MAX. Current (Amps)

0.30

Mfg in ISO 9001 Certified Facility

Yes

Motor Type (AC/DC)

Mounting Opening (in sq.)

10-1/2"

Night Light

0.2

Noise (Sones)

0.5, 0.8, <0.3, 0.7, <0.3, 0.5

Power Consumption (Watts)

13.0, 19.3, 10.3, 17.0,
7.7, 12.8

Power Rating (V/Hz)

120/60

Product Family Name

WhisperCeiling DC

Rated Life (hours)

50,000

Speed (RPM) 1342 1480

1016, 1268, 867, 1185, 768,
1097

Static Pressure in inches w.g.

0.1, 0.25, 0.1, 0.25, 0.1, 0.25

Thermal Fuse Protection

Yes

Type of Lamp Socket

LED Chip

Type of Motor Bearing

Ball

UL Listed for Tub/Shower Enclosure when GFCI Protected

Yes

UL tub/Shower Enclosure

Yes

Washington VIAQ Code

Yes
