FV-NLF46RES | Recessed Inlet® for Exhaust and Supply Inlets
FV-NLF46RES | Recessed Inlet® for Exhaust and Supply Inlets

FV-NLF46RES | Recessed Inlet® for Exhaust and Supply Inlets

by Panasonic
$128.99 - $128.99
$128.99
$128.99 - $128.99
$128.99

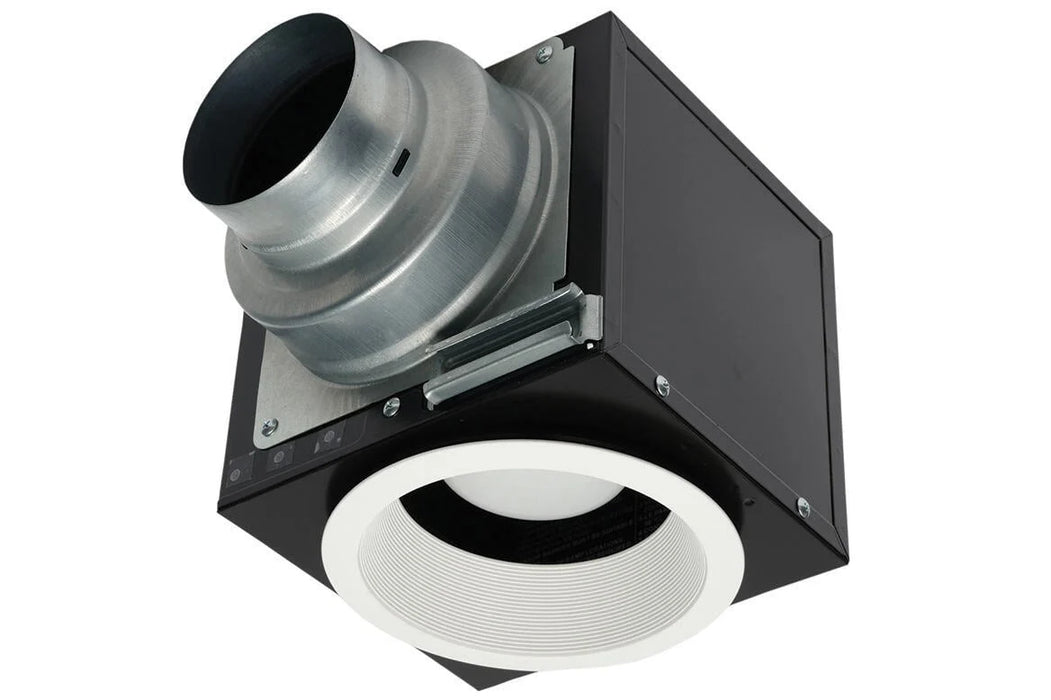

Recessed Inlet® is a multi-purpose exhaust or supply inlet that is ideal for use with remote mount in-line fans or H/ERV’s, or as a light-only option matching the WhisperRecessed® fan/LED light.
Buy Now

Key Features:

  • Incorporates an architectural-grade, recessed, can light design with 6" aperture

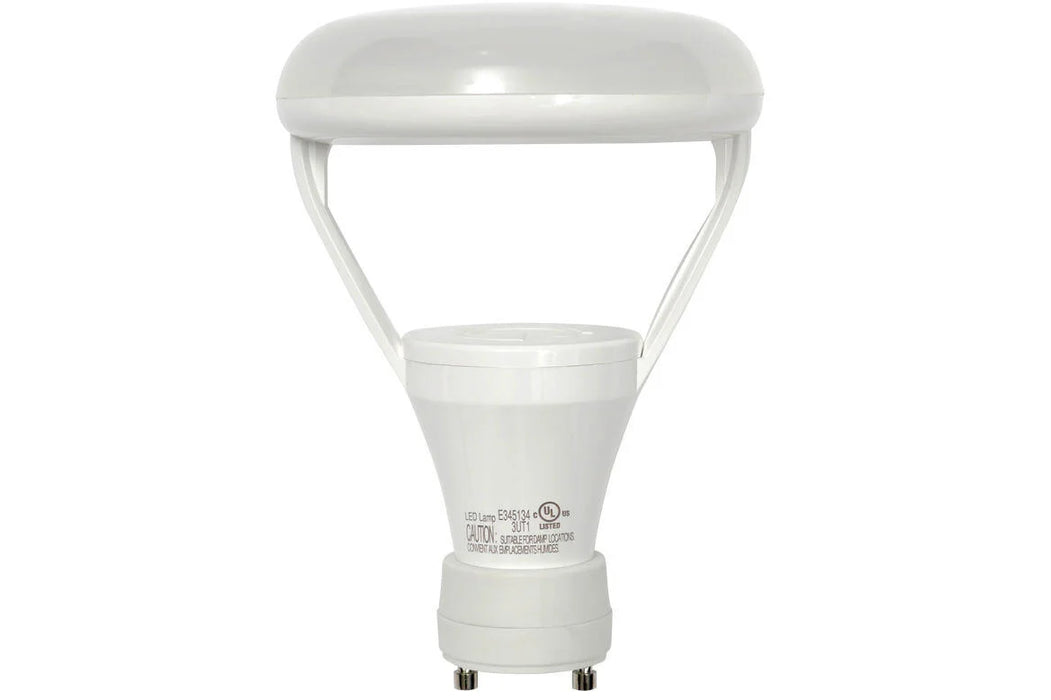

  • Includes (1) replaceable 11W, ENERGY STAR® 2.0 certified, GU24 base dimmable LED lamp
  • Ultra-energy efficient LED lamp uses up to 40% less energy than CFLs

The Design Solution for Exhaust or Supply Inlets

Recessed Inlet® is a multi-purpose exhaust or supply inlet that is ideal for use with remote mount in-line fans or H/ERV’s, or as a light-only option matching the WhisperRecessed® fan/LED light.

Recessed Inlet is an attractive way to remove moist, polluted air from the home or distribute fresh air to multiple rooms when needed. Its upscale, recessed, can light appearance complements the aesthetics of any bathroom, living room or laundry room area.

Recessed Inlet includes an 11 Watt, ENERGY STAR® 2.0 certified, GU24 base LED lamp, and is also UL listed for tub/shower enclosure when GFCI protected.

Additional Features and Benefits:

  • Integrated 4" or 6" duct adapter
  • UL listed for tub/shower enclosure when GFCI protected
  • IC rated
  • 5-year warranty on LED, 3-year warranty on parts

Product Specifications:

Model

FV-NLF46RES

Additional info

*Only for Lamp

Advanced Features

Single Speed

California Title 24 Compliant

Yes

Color Rendering Index

92

Color Temperature (Kelvin)

2,700

Construction Type

Single Family/Manufactured Housing. Multi-Family.
Hospitality/Assisted Living/Student Housing. Renovation/Remodeling.

Ventilation Design Approach

Continuous Ventilation.
Spot Ventilation.

Duct Diameter

4" & 6"

ENERGY STAR Qualified

Yes*

Fan Type

Fan/Light - LED

Gross Weight (lbs)

6.9

Housing Collar Opening (Inches)

6" Round

Industry

Residential. Light
Commercial.

Inlet

Inlet Unit

Lamp Model # (Green Creative)

11BR30G4DIM/927/GU24

Lamp Watts

1 x 11

Lumens (lm)

750

Lumens Per Watt (LPW)

69

Mfg in ISO 9001 Certified Facility

Yes

Motor Type (AC/DC)

N/A

Mounting Options

Ceiling Mount (UL).
Tub/Shower (UL)

Power Rating (V/Hz)

120/60

Product Family Name

Recessed Inlet

Rated Life (hours)

25,000

Trim Outer Diameter (Inches)

7-1/4" Round

Type of Lamp Socket

GU24

UL tub/Shower Enclosure

Yes
