T&S B-2360-01 | Bubbler, Flexible Mouth Guard, Push Button Metering Handle, Flow Control

Name: T&S B-2360-01 | Bubbler, Flexible Mouth Guard, Push Button Metering Handle, Flow Control
Brand: T&S Brass
Price: 237.05 USD
Availability: InStock

by T&S Brass

$237.05 - $237.05

$237.05

$237.05 - $237.05

$237.05

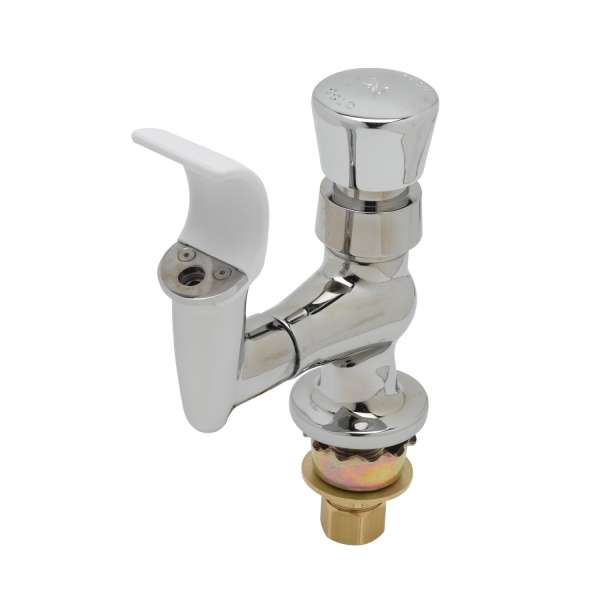

Deck mount bubbler with polished chrome plated brass body, flexible rubber mouth guard, adjustable outlet flow control, metering cartridge, push button cap and 1/2" NPSM male inlet with coupling nut. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements

Buy Now

Description

Body: Single Hole
Body: Single Temp
Body Mount: Deck
Cartridge-Spindle: Metering
Handle: Push Button Metering
Inlet: 1/2 in NPSM Male
Material: Brass Construction
Nozzle Flow: 0.32 GPM (1.21 L/min)
Nozzle Outlet Type: Flow Regulator
Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

Specifications

Nozzle Flow: 0.32 GPM (1.21 L/min)
Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

Owner's Guide

Patent: 5655748
California Prop #65 Warning
Country Of Origin: USA

Downloads

Resources:

Spec Drawings/Parts Explosion

Submittal

Revit (BIM)

Warranty: One Year (Limited)

Installation Instructions:

Bubbler Faucet

Metering Barrel Assembly
