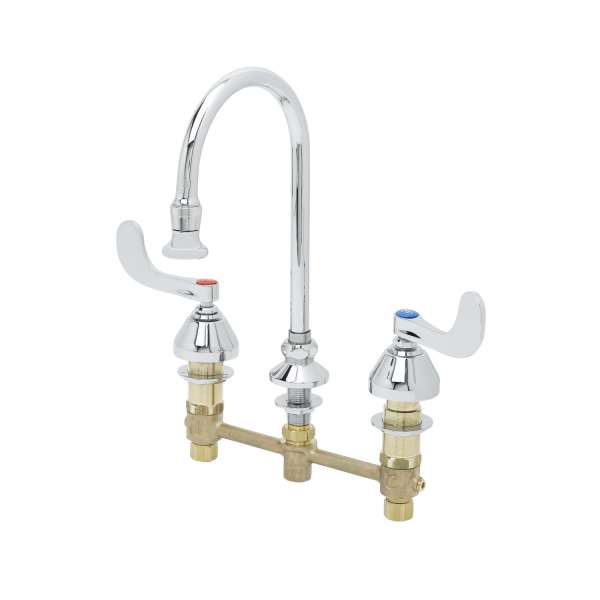

T&S B-2866-04 | Medical Faucet, Deck Mount, 8" Centers, Swivel/Rigid GN w/Rosespray, 4" Wrist Handles

T&S B-2866-04 | Medical Faucet, Deck Mount, 8" Centers, Swivel/Rigid GN w/Rosespray, 4" Wrist Handles

by Plumbers Paradise
$267.57 - $267.57
$267.57
$267.57 - $267.57
$267.57

8" concealed deck mount mixing faucet with forged brass body, 5 13/16" swivel/rigid gooseneck with 2.2 GPM rosespray outlet, compression cartridges with spring checks, 4" wrist action handles, chrome plated escutcheons and 1/2" NPT male inlets with coupling nuts. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
Buy Now
  • Body: 8 in Centers (203.2 mm)
  • Body: Concealed
  • Body Mount: Deck
  • Cartridge-Spindle: 1/4 Turn Compression
  • Feature: EasyInstall
  • Feature: Spring Check
  • Handle: 4 in Wrist (101.6 mm)
  • Material: Brass Construction
  • Nozzle: 6 in (152.4 mm)
  • Nozzle: Gooseneck
  • Nozzle: Swivel
  • Nozzle Flow: 2.2 GPM (8.33 L/min)
  • Nozzle Outlet Type: Flow Control Device
  • Nozzle Outlet Type: Non-Aerated Spray Device
  • Nozzle Outlet Type: Rosespray
  • Pressure Max: 125 psi (8.62 bar)
  • Pressure Min: 20 psi (1.38 bar)
  • Temperature Max: 140 F (60℃)
  • Temperature Min: 40 F (4.44℃)
  • Nozzle Flow: 2.2 GPM (8.33 L/min)
  • Pressure Max: 125 psi (8.62 bar)
  • Pressure Min: 20 psi (1.38 bar)
  • Temperature Max: 140 F (60℃)
  • Temperature Min: 40 F (4.44℃)
  • Patent: 7472434
  • California Prop #65 Warning
  • Country Of Origin: USA
  • Patent: EasyInstall

Resources:

Spec Drawings/Parts Explosion

Submittal

Revit (BIM)

Warranty: One Year (Limited)

Installation Instructions:

Concealed Widespread Faucet
