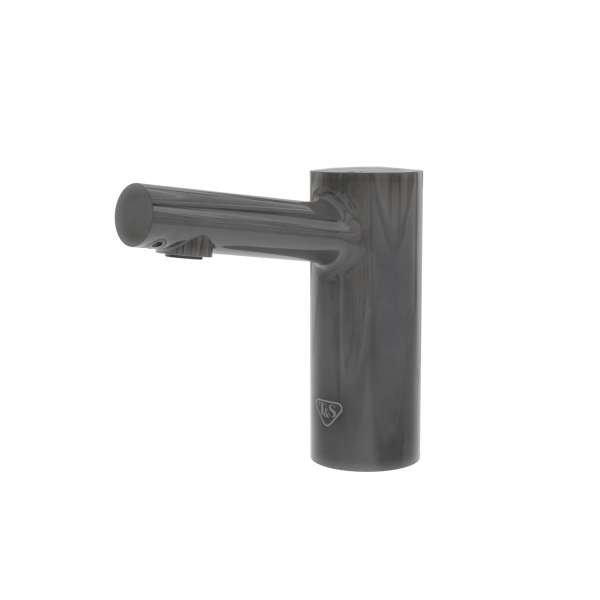

T&S ECW-3156-PG | WaveCrest Holden Electronic Sensor Lavatory Faucet, Single Hole Deck Mount, Polished Graphite, 0.5 GPM / 1.9 LPM VR Concealed Spray Device

T&S ECW-3156-PG | WaveCrest Holden Electronic Sensor Lavatory Faucet, Single Hole Deck Mount, Polished Graphite, 0.5 GPM / 1.9 LPM VR Concealed Spray Device

by Plumbers Paradise
$583.00 - $583.00
$583.00
$583.00 - $583.00
$583.00

Single hole deck mount electronic sensor faucet with polished graphite brass body, 0.5 GPM vandal resistant non-aerated spray device, AC/DC control module with internal flow control setting switches, temperature control mixing valve with integral check valves and 18" flexible stainless steel supply hoses with 3/8" compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9,NSF 372 and UL 1951. Meets ADA ANSI/ICC A117.1 requirements.
Buy Now

  • Body: Single Hole

  • Body Mount: Deck

  • Brand: WaveCrest

  • Feature: Check Valve

  • Finish: Polished Graphite

  • Inlet: 3/8 Compression

  • Material: Brass Construction

  • Nozzle: Cast Spout

  • Nozzle Flow: 0.5 GPM (1.89 L/min)

  • Nozzle Outlet Type: Non-Aerated Spray Device

  • Nozzle Outlet Type: Vandal Resistant

  • Pressure Max: 125 psi (8.62 bar)

  • Pressure Min: 20 psi (1.38 bar)

  • Style: Holden Faucets

  • Temperature Max: 140 F (60℃)

  • Temperature Min: 40 F (4.44℃)

  • Nozzle Flow: 0.5 GPM (1.89 L/min)

  • Pressure Max: 125 psi (8.62 bar)

  • Pressure Min: 20 psi (1.38 bar)

  • Temperature Max: 140 F (60℃)

  • Temperature Min: 40 F (4.44℃)

Installation:

Turn off water supply.

Mount faucet through single-hole deck opening and secure underneath.

Connect supply hoses to hot/cold lines and mixing valve.

Install AC/DC control module under the sink and connect sensor cable.

Power the unit via AC adapter or batteries.

Turn on water, test sensor function, and check for leaks.

Adjust temperature using the mixing valve.

A licensed plumber is recommended for all faucet installations.

Ready to use!

Resources:

Spec Drawings/Parts Explosion
Submittal

Warranty: Three Year (Limited)

Installation:

WaveCrest Sensor Faucet
