FV-0511VKSL2 | WhisperGreen® Select Fan, Multi-Speed, 50-80-110 CFM

FV-0511VKSL2 | WhisperGreen® Select Fan, Multi-Speed, 50-80-110 CFM

by Panasonic
$288.99 - $288.99
$288.99
$288.99 - $288.99
$288.99

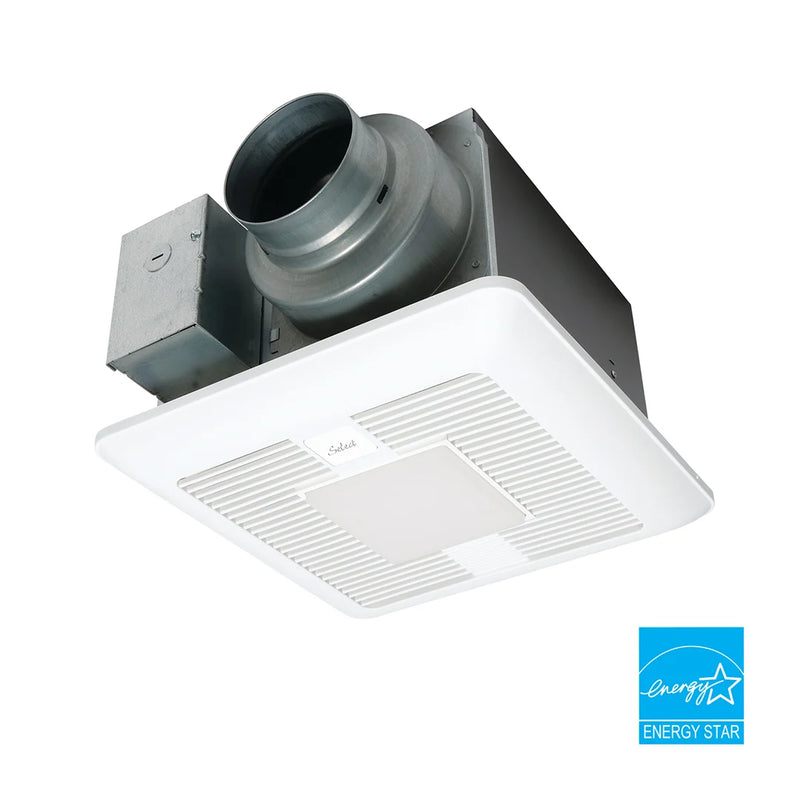

The Panasonic FV-0511VKSL2 is a quiet, energy-efficient ventilation fan with built-in LED lighting. It provides powerful airflow for healthier indoor air quality.
Buy Now
Feature Description
Application Versatility Ideal for bathroom, laundry room, sunroom, basement, or garage
Pick-A-Flow® Selector Choose between 50, 80, or 110 CFM airflow settings for flexible performance
SmartFlow™ Technology Automatically adjusts fan speed to maintain selected airflow
LED Lighting Integrated 10W dimmable LED light panel with <1W night light
JA-8 Compliant Meets California Title 24 high-efficiency lighting requirements
ZAM Housing Durable 26-gauge Zinc-Aluminum-Magnesium construction
Improved Flex-Z Fast® Bracket Single-hinge design allows fast and flexible installation
Quiet Operation Whisper-quiet motor for discreet, continuous use
Energy Efficiency ENERGY STAR® rated to lower utility costs



The Panasonic FV-0511VKSL2 is a premium, energy-efficient ventilation fan designed to provide whole-house precision airflow for improved indoor air quality. Ideal for use in bathrooms, laundry rooms, sunrooms, basements, and garages, this Panasonic ventilation fan offers a reliable, customizable solution for a variety of residential applications.

Featuring Panasonic’s Pick-A-Flow® Airflow Selector, the FV-0511VKSL2 allows you to easily choose between 50, 80, or 110 CFM settings to match the room’s ventilation needs. The integrated SmartFlow™ technology automatically adjusts the fan speed to maintain optimal airflow and ensure compliance with building codes, helping reduce installation errors and callbacks.

The Panasonic FV-0511VKSL2 includes a modern grille design with a built-in dimmable 10W LED light panel that offers soft, energy-saving illumination, plus a convenient LED night light (less than 1W) for added safety and comfort. It’s also JA-8 compliant to meet California Title 24 requirements for high-efficiency lighting.

This Panasonic fan is built with a durable 26-gauge Zinc-Aluminum-Magnesium (ZAM) housing, making it a smart, environmentally-friendly choice. The updated Flex-Z Fast® installation system includes an improved single-hinge bracket that simplifies mounting in tight spaces, saving time and labor.

Whether you’re upgrading an older system or installing a new one, the Panasonic FV-0511VKSL2 ventilation fan delivers ultra-quiet performance, energy efficiency, and flexible installation—making it one of the most advanced ventilation solutions in its class.

Product Specifications:

Model

FV-0511VKSL2

Model number

FV-0511VKSL2

Fan Type

Fan/Light -LED

Advanced Features

Pick-A-Flow™ Airflow
Selector, ECM motor with SmartFlow technology, Multi-Speed with Time Delay,
Dimmable LED Light

Air Volume Supply (CFM)

@0.1=
30,40,50,60,70,80,90,100,110 @0.25= 30,41,50,60,70,80,90,101,110 @0.375=
30,40,50,60,69,78,90,99,103

Noise (Sones)

@0.1"SP
(30,40,50,60,70,80,90,100 CFM) = <0.3 , 0.4 @ 110 CFM
@0.25"SP(30,41,50,60,70,80,90,101,110 CFM) = 0.4, 0.4, 0.4, 0.4, 0.5, 0.5,
0.6, 0.8, 0.8

Power Consumption (Watts)

30 CFM=2.5, 40=2.7, 50=3.2,
60=3.7, 70=4.6, 80=5.3, 90=6.7, 100=8.2, 110=10.5

Energy Efficiency
(CFM/Watt)

30 CFM=12.0, 40=14.8,
50=15.7, 60=16.2, 70=15.8, 80=15.3, 90=13.5, 100=12.2, 110=10.5

Current (Amps)

30 CFM=0.04, 40=0.04,
50=0.04, 60=0.05, 70=0.06, 80=0.06, 90=0.08, 100=0.09, 110=0.11

Power Rating (V/Hz)

120/60

Motor Type (AC/DC)

DC (ECM)

ENERGY STAR® Certified

Yes

Other Approved Codes and
Standards

ASHRAE 62.2, LEED, CA T-24,
CALGreen

Duct Diameter

4 inch

Mounting Options

Horizontal

Ventilation Design
Approach

Bathroom Exhaust Fan

Warranty

6 years ECM Motor, 3 years
all other parts

Industry

Residential, Light Commercial

Radiation Damper Available

Yes, PC-RD05C5

Master Carton Gross Weight
(lbs.)

12.50 (1 unit)

Master Carton Dimensions
(HxWxD)

11.85 x 14.17 x 16.73

UL Listed for Tub/Shower
Enclosure when GFCI Protected

Yes

Basic Installation & Maintenance for Panasonic FV-0511VKSL2 Fan

Installation Steps:


  1. A licensed electrician or contractor is recommended to ensure proper installation and code compliance.

  2. Shut off power at the circuit breaker before beginning any work.

  3. Use a voltage tester to confirm power is fully off at the installation site.

  4. Mount the fan securely between ceiling joists using the included brackets. Ensure it’s positioned for proper duct and wiring access.

  5. Attach ductwork (4" or 6") and make electrical connections as shown in the wiring diagram inside the housing.

  6. Snap the LED module into place and attach the grille before restoring power.

Maintenance Tips:


  • Gently pull down the grille and clean it with a soft cloth or vacuum to remove dust buildup.

  • Check for dust buildup on the fan and ensure ductwork is clear for optimal airflow.

  • If the LED dims or stops working, replace with a Panasonic-compatible LED module.

WhisperGreen Sell Sheet (PDF)

FV-0511VKSL2 Submittal (PDF)

FV-0511VKSL2 Architectural Specs (PDF)

FV-0511VKSL2 Service Manual (PDF)

FV-0511VKSL2 Installation Manual (English) (PDF)
